FixVault
Home
›
Nissan-Datsun
›
2014
›
Juke SL, FWD, Standard Trans
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Mechanical
›
Removal And Installation
›
Intake Manifold
›
Exploded View
Exploded View

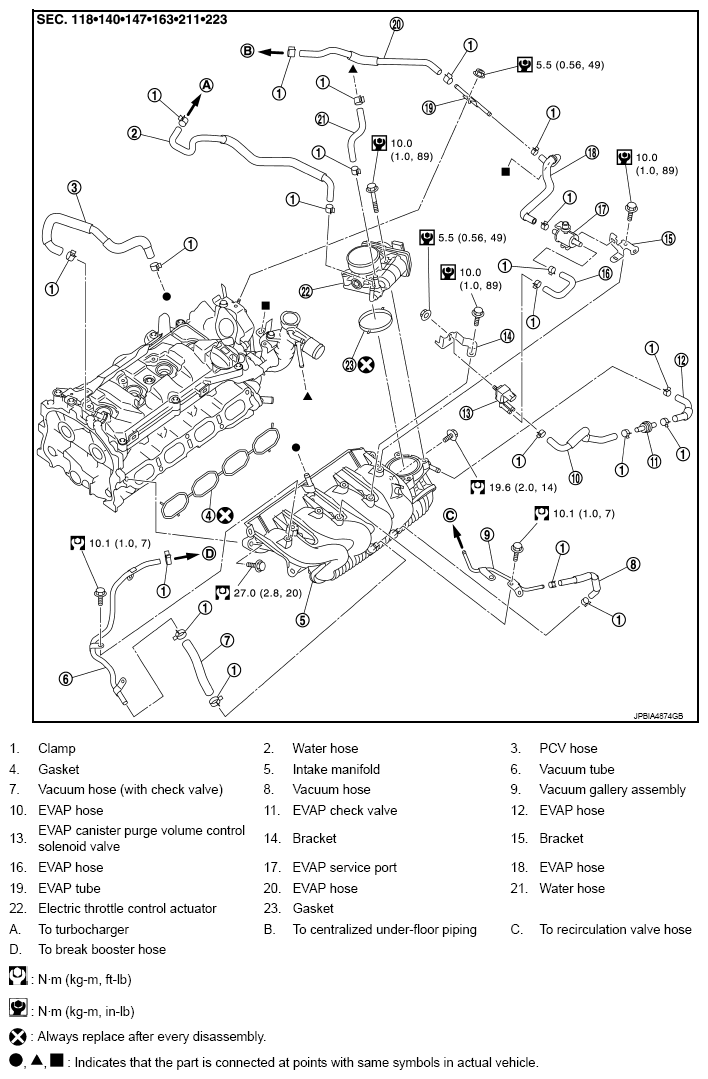

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
