ENGINE CONTROL SYSTEM: Component Parts Location
›
Body Compartment
Body Compartment

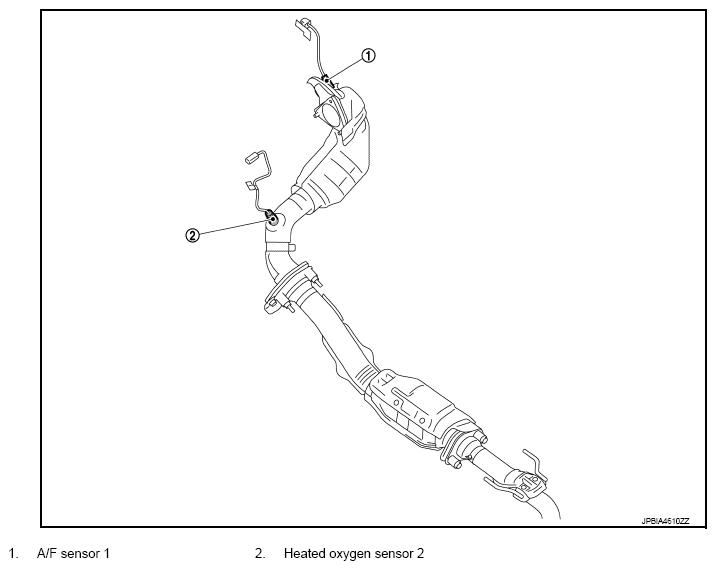

Fig 1: Identifying A/F Sensor And Heated Oxygen Sensor (AWD)
Courtesy of NISSAN NORTH AMERICA, INC.

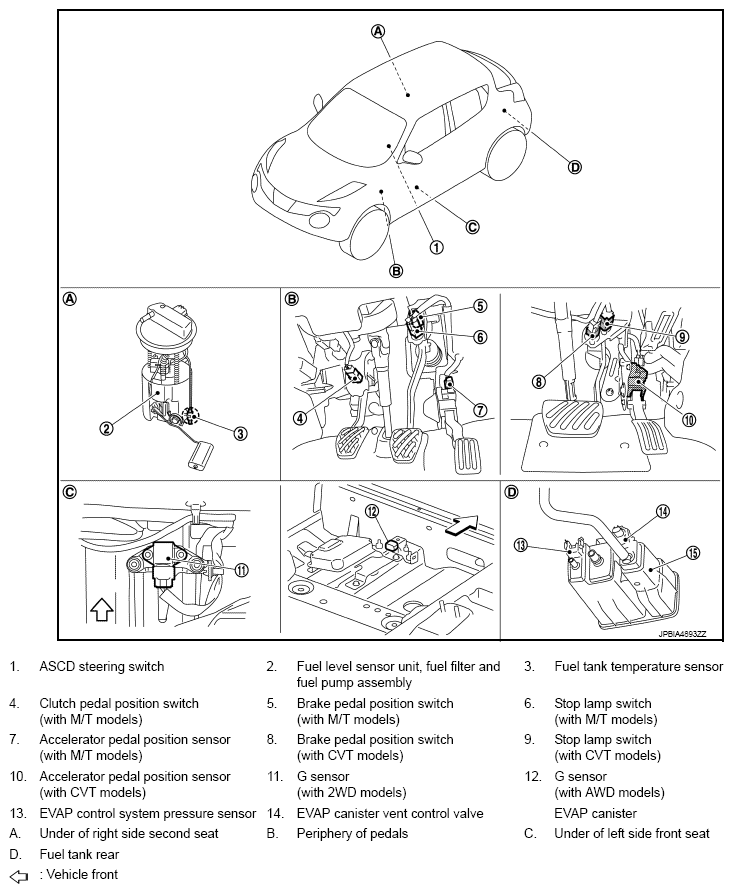

Fig 2: Identifying Body Compartment Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
