SRS Airbag Control System
›
System Description
›
Component Parts
›
Component Parts Location
Component Parts Location

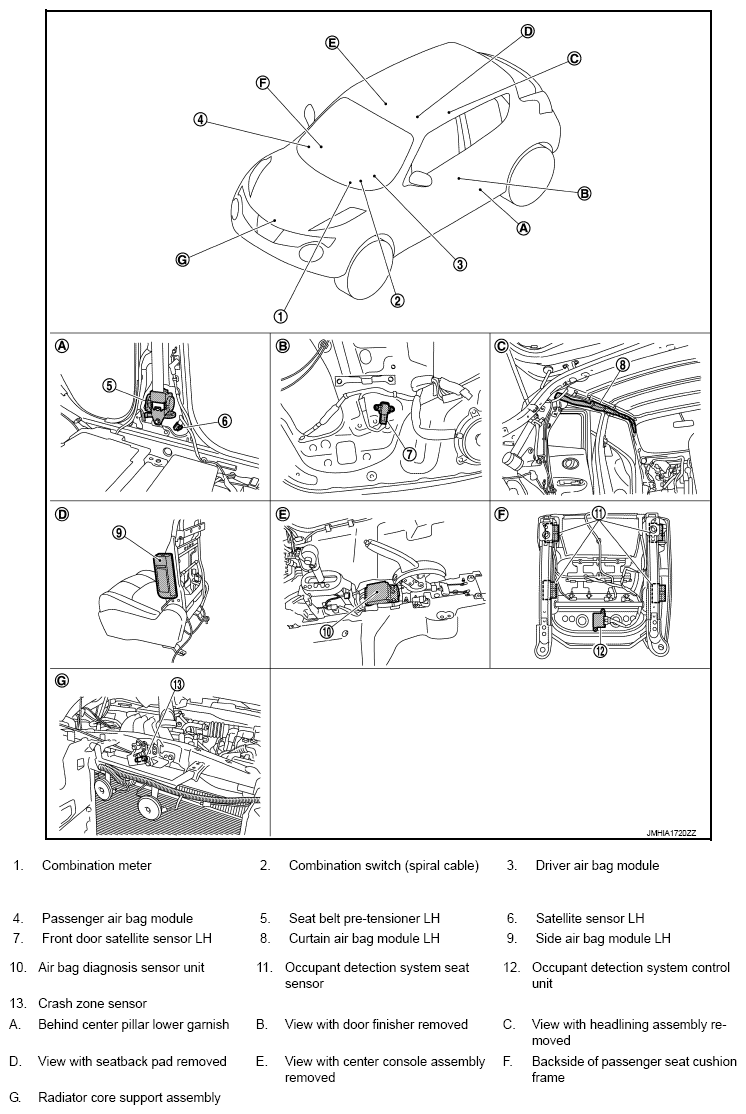

Fig 1: Identifying SRS Airbag Control System Component Parts Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
