FixVault
Home
›
Nissan-Datsun
›
2014
›
Leaf SL
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Window System
›
Removal And Installation
›
Opera Window
›
Exploded View
Exploded View

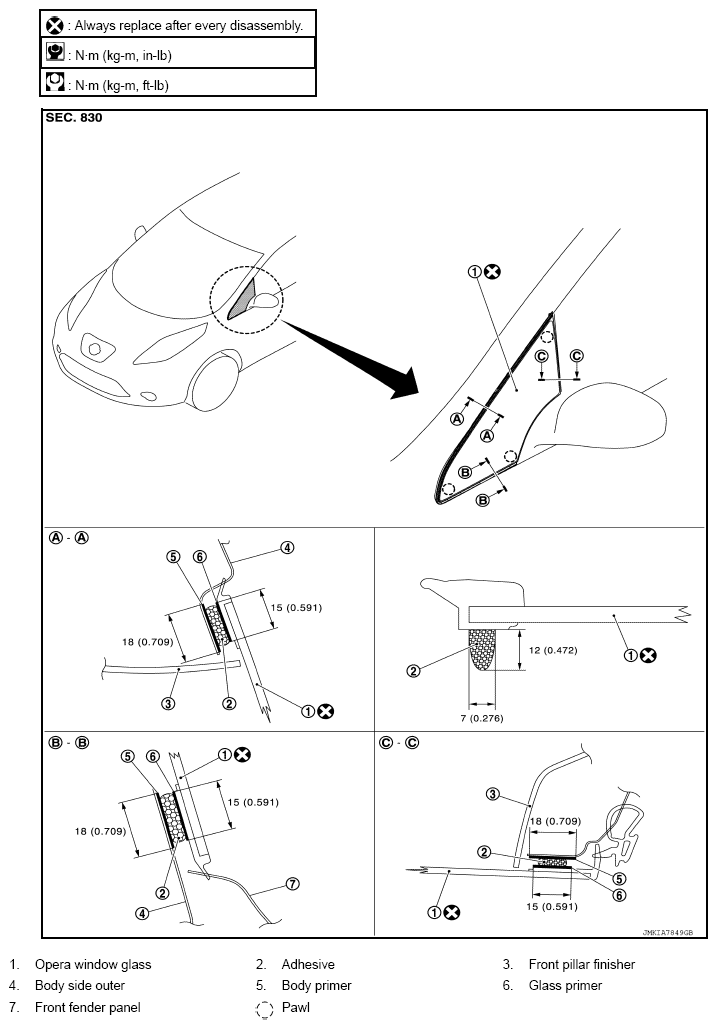

Fig 1: Exploded View Of Opera Window
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
