System Application

BCM can perform the following functions.

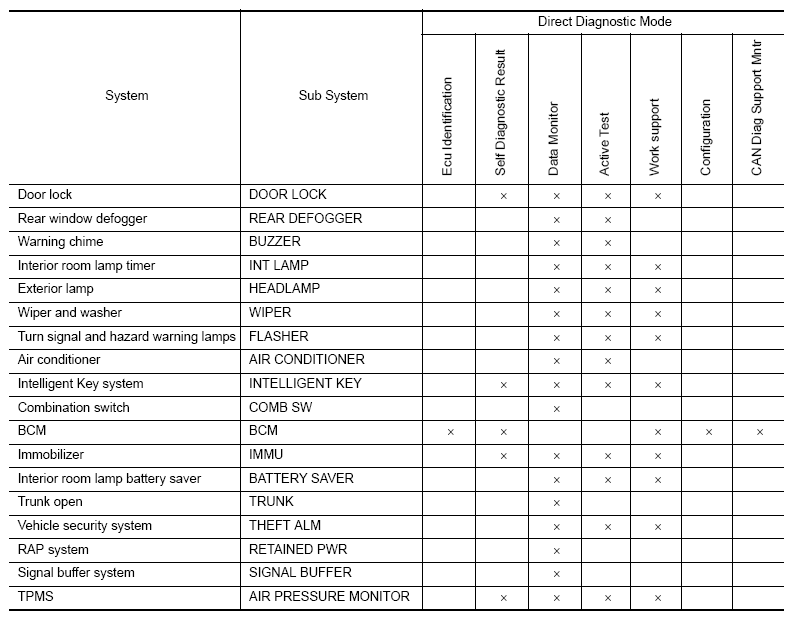

Fig 1: Body Control Module Chart
G09456359Courtesy of NISSAN NORTH AMERICA, INC.
