Parking Brake Switch

Detects the operation status of parking brake switch and transmits converted electric signal from combination meter to ABS actuator and electric unit (control unit) via CAN communication.

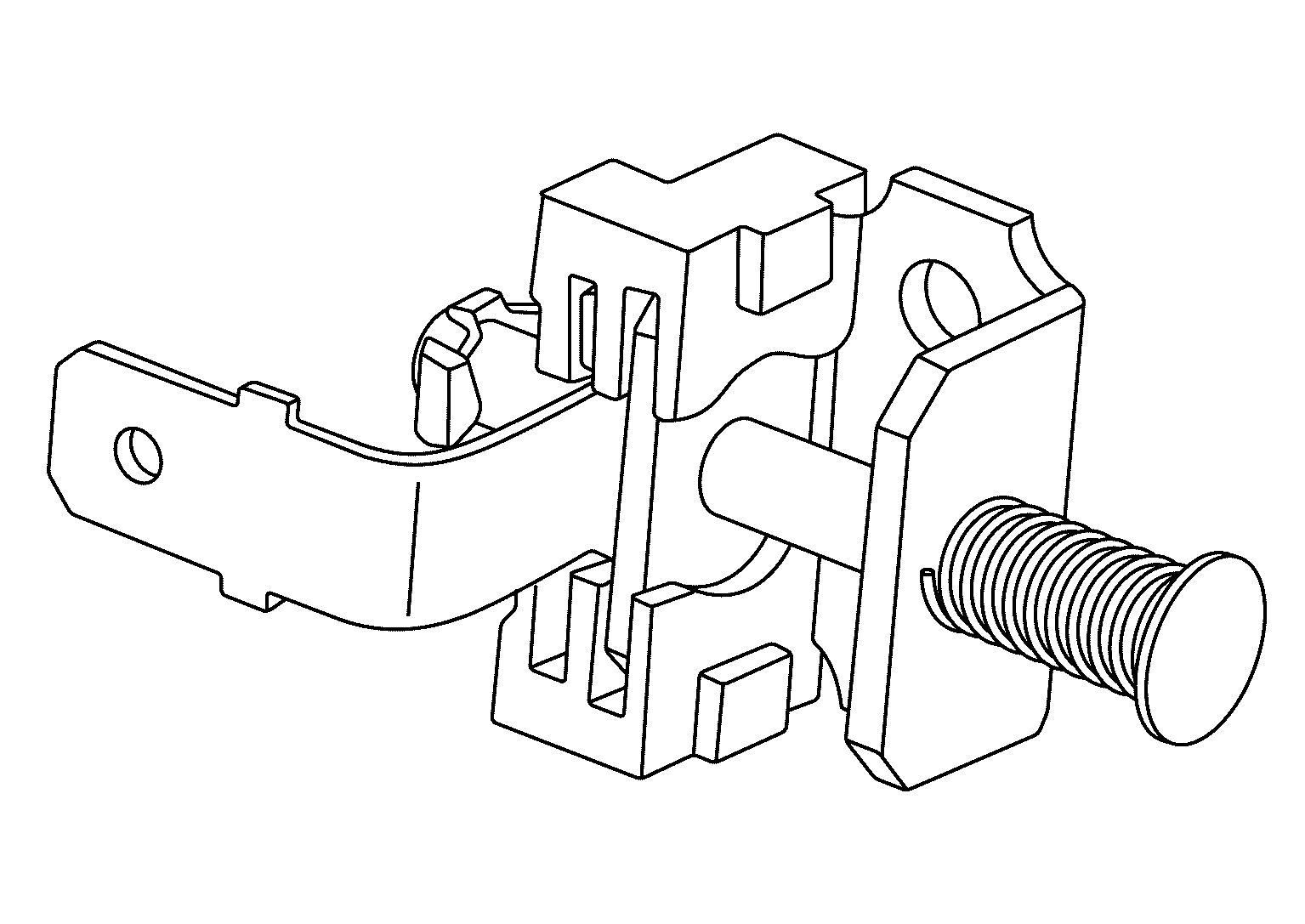

Fig 1: Identifying Parking Brake Switch
G08703954Courtesy of NISSAN NORTH AMERICA, INC.
