EV Control System (Introduction)
›
System Description
›
System
›
Air Conditioner Control
›
AIR CONDITIONER CONTROL: System Description
›
System Diagram
System Diagram

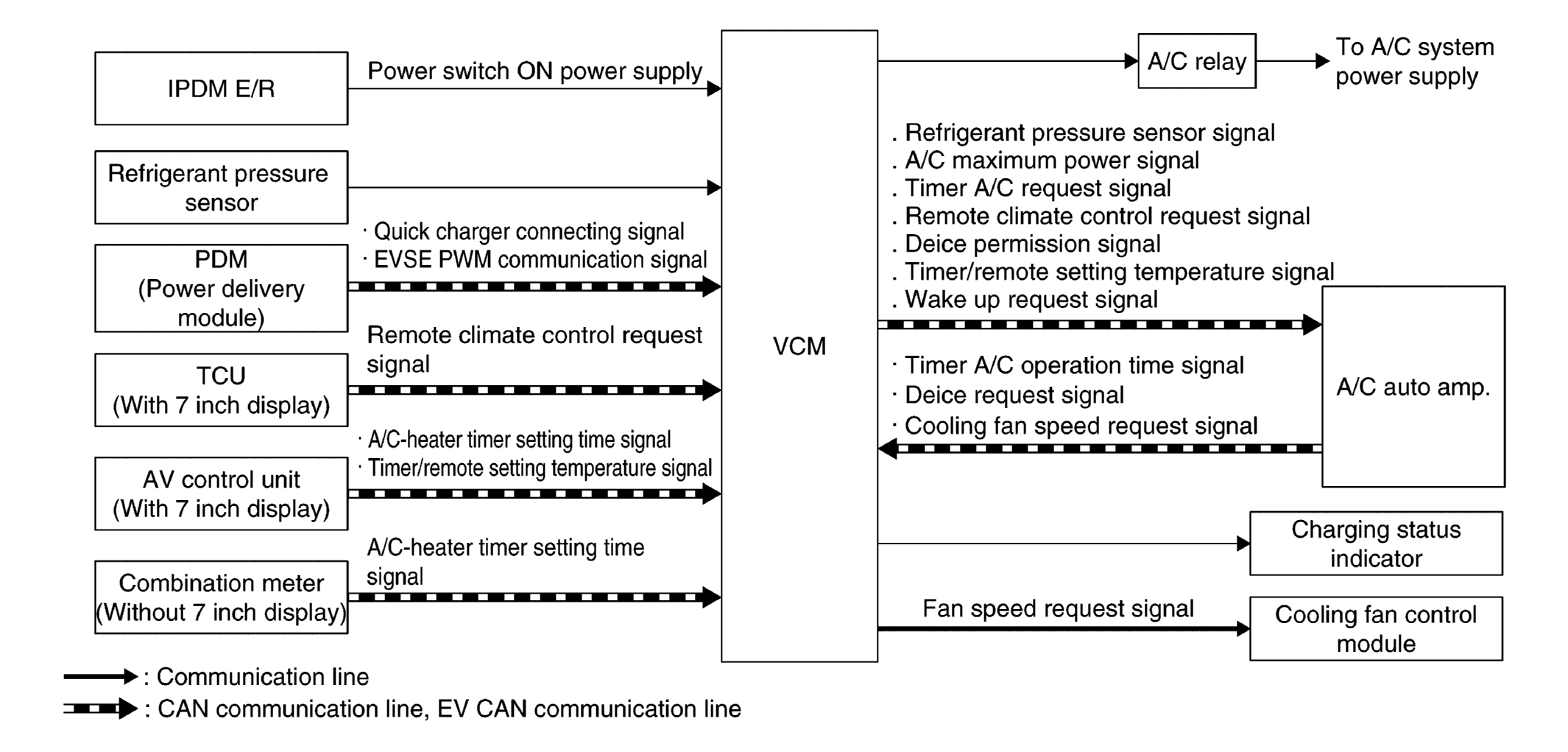

Fig 1: Air Conditioner Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
TCU is included only in models with TELEMATICS system.
Courtesy of NISSAN NORTH AMERICA, INC.
