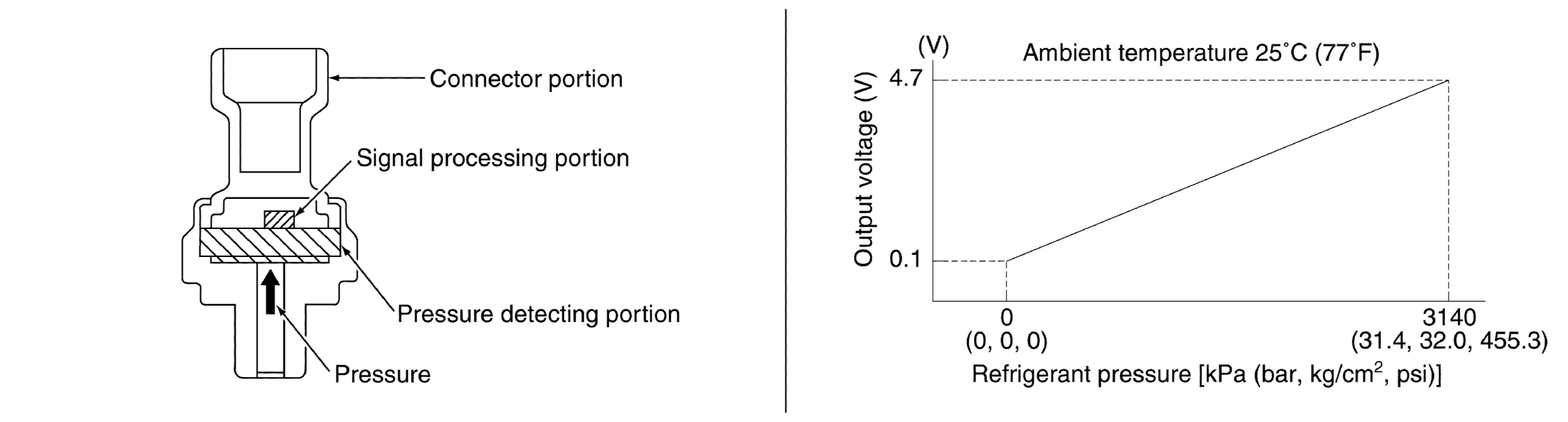

Refrigerant Pressure Sensor
The sensor uses an electrostatic volume pressure transducer to convert refrigerant pressure to voltage. VCM calculates refrigerant pressure based on the voltage and sends a refrigerant pressure signal to the A/C auto amp. via EV system CAN communication.
