EV Control System (Introduction)
›
System Description
›
System
›
Li-Ion Battery Charge Control
›
LI-ION BATTERY CHARGE CONTROL: Quick Charge Control
›
System Diagram
System Diagram

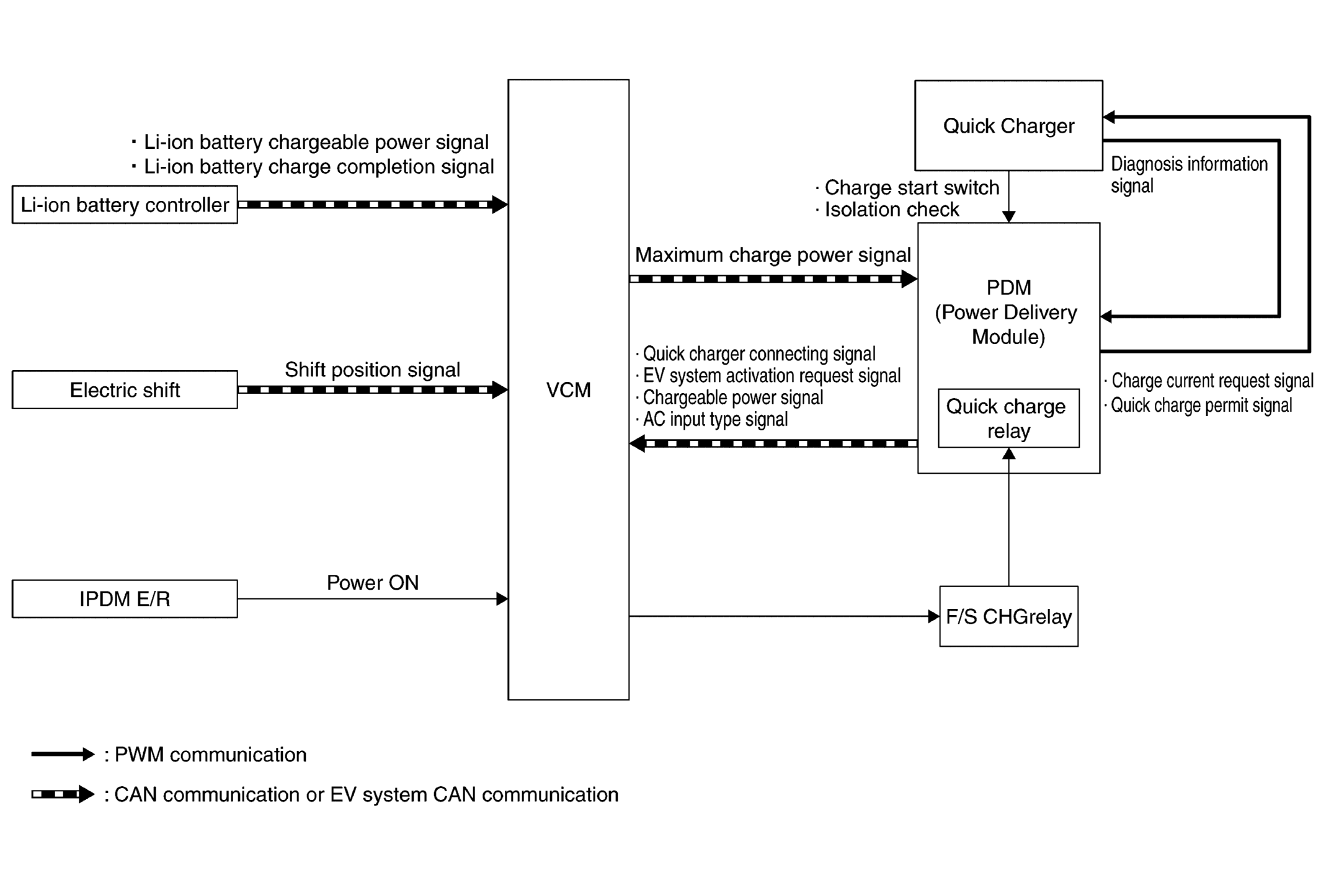

Fig 1: Li-ion Battery Charge Control - System Diagram (Quick Charge Control)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
