SRS Airbag Control System
›
System Description
›
System
›
System Description
›
System Diagram
System Diagram

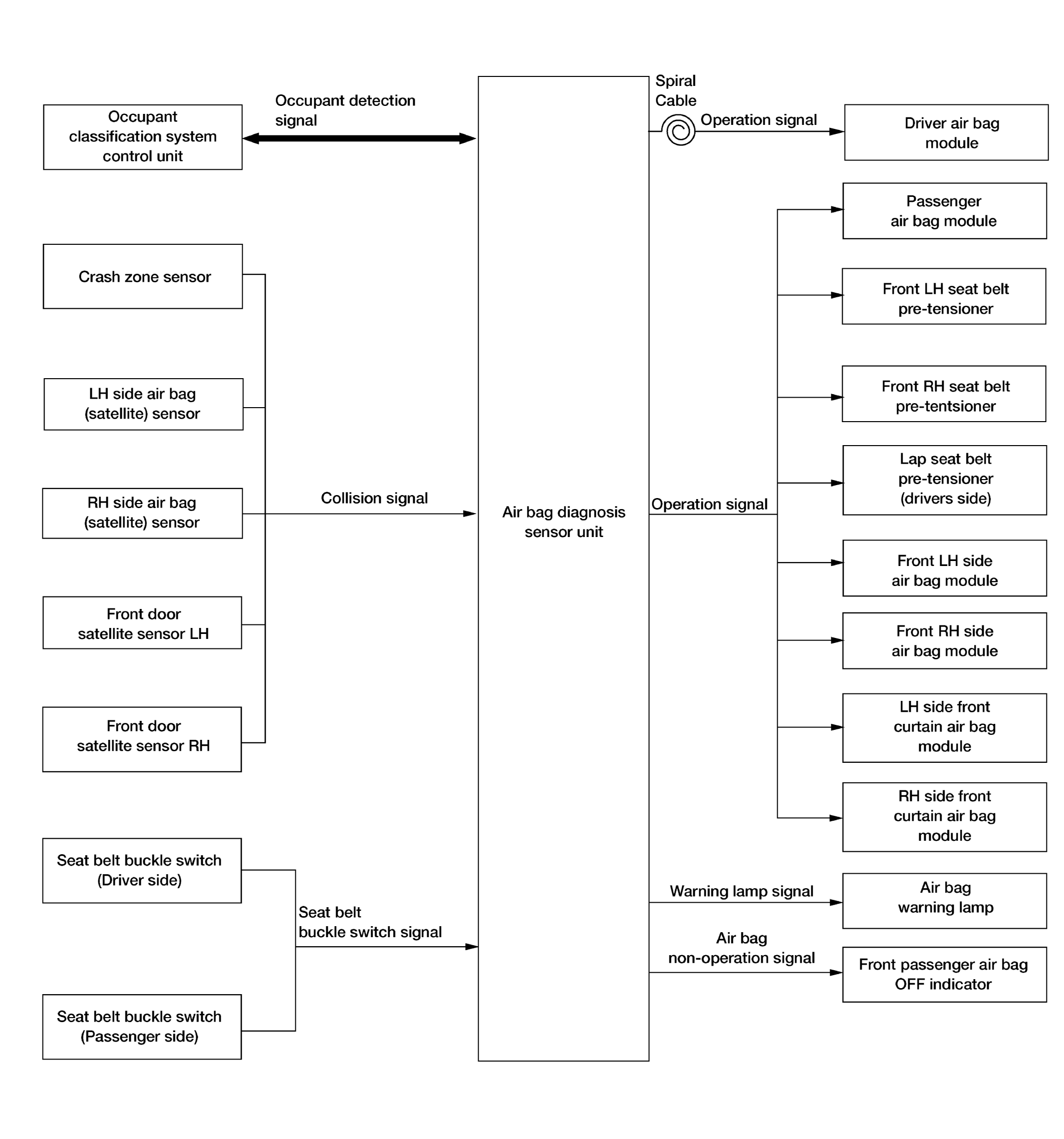

Fig 1: SRS Airbag Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
