Removal and Installation: Removal

Remove the spiral cable. Refer to "REMOVAL AND INSTALLATION ".
Remove the screws (A) and release the clips (B) to remove the steering angle sensor (1) from the spiral cable (2).

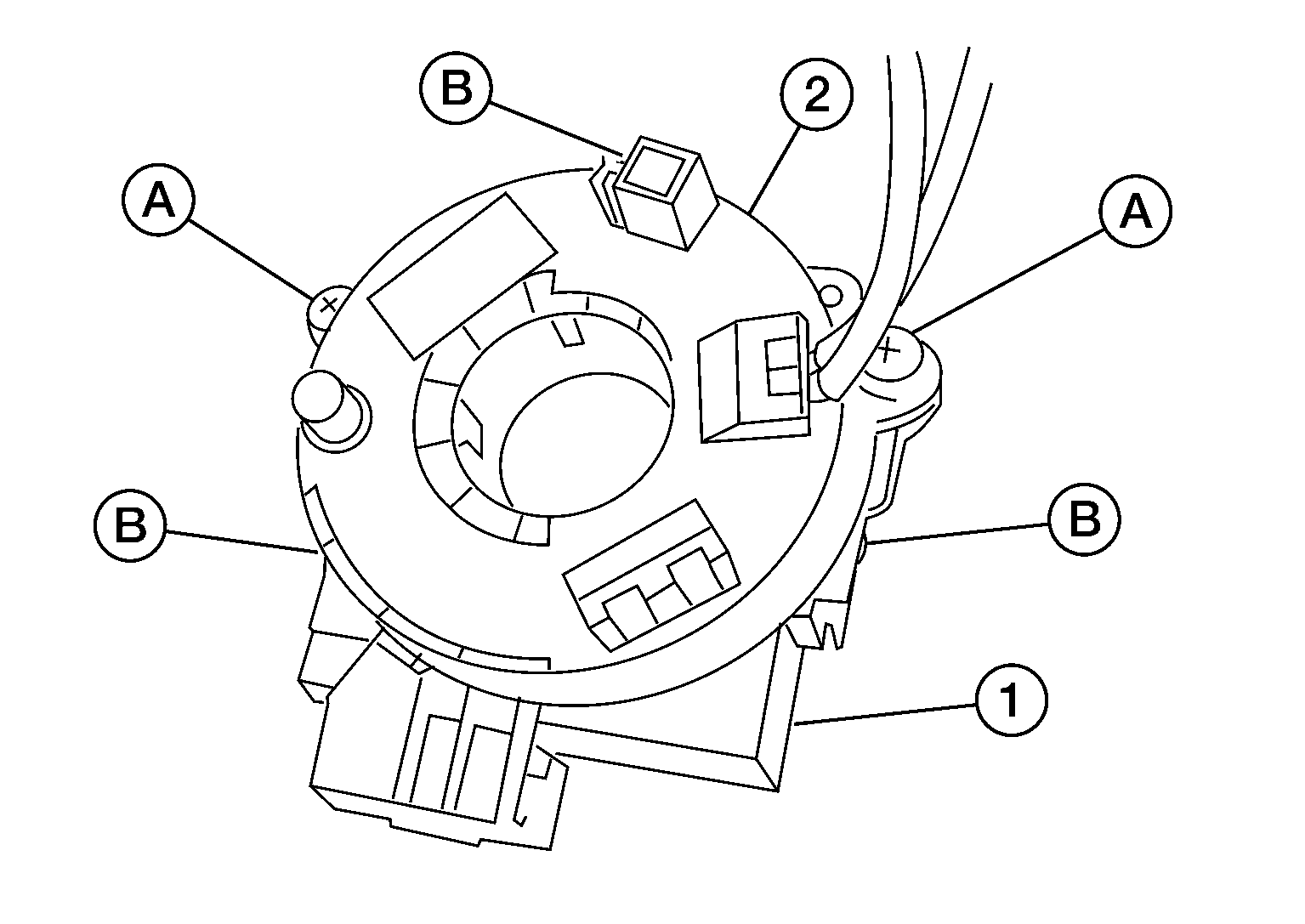

Fig 1: Identifying Steering Angle Sensor, Spiral Cable, Screws And Clips
Courtesy of NISSAN NORTH AMERICA, INC.
