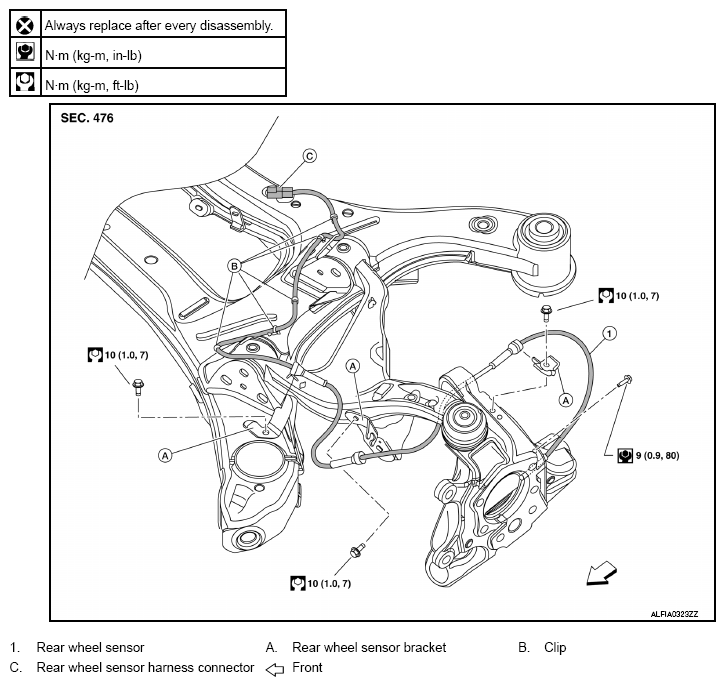

Exploded View - Rear Wheel Sensor
Exploded View - Rear Wheel Sensor
Fig 1: Rear Wheel Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
