Power Control System (IPDM/Er)
›
System Description
›
Relay Control System
›
System Diagram
System Diagram

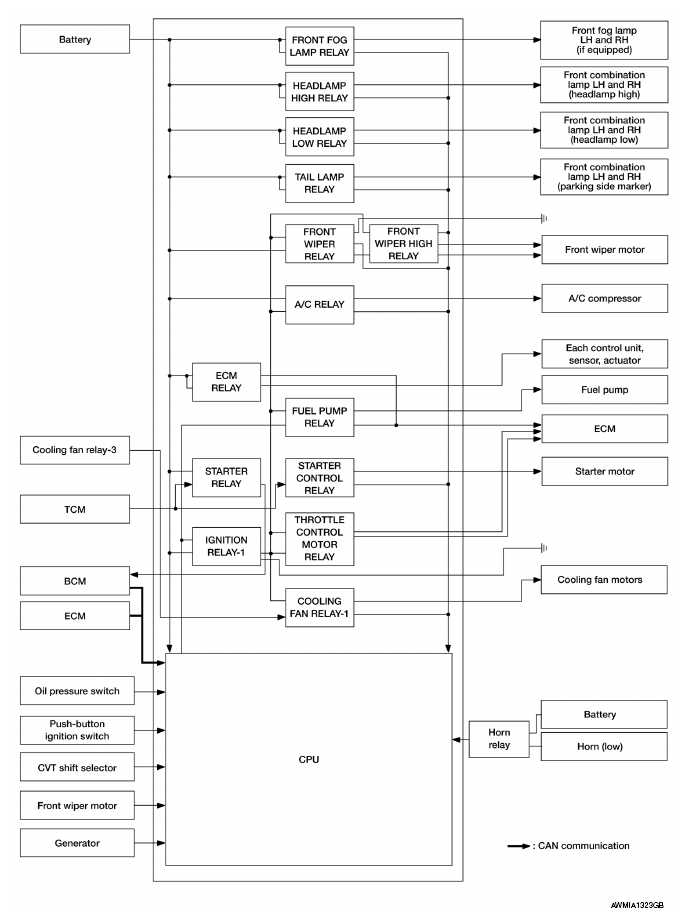

Fig 1: Relay Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
