Connector End Views

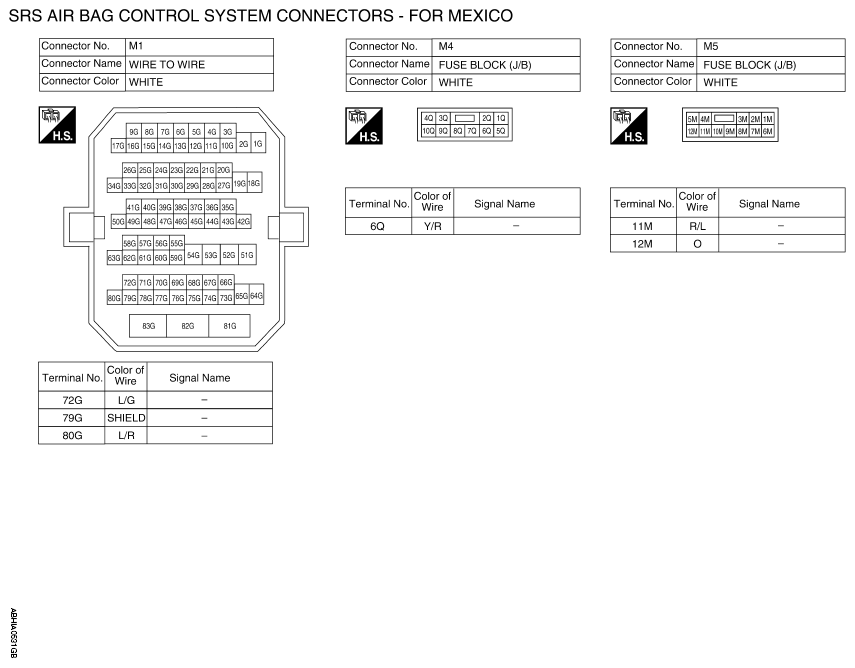

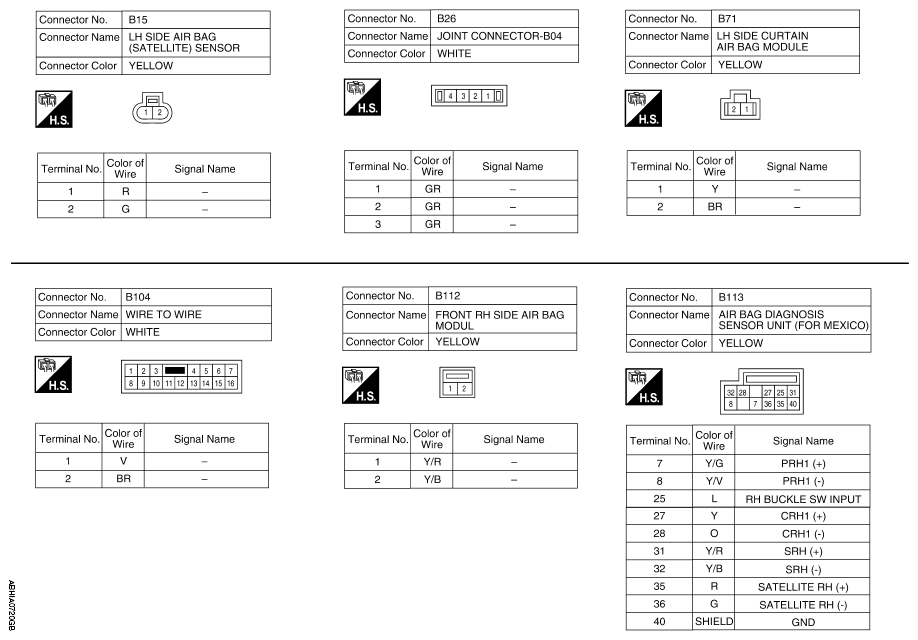

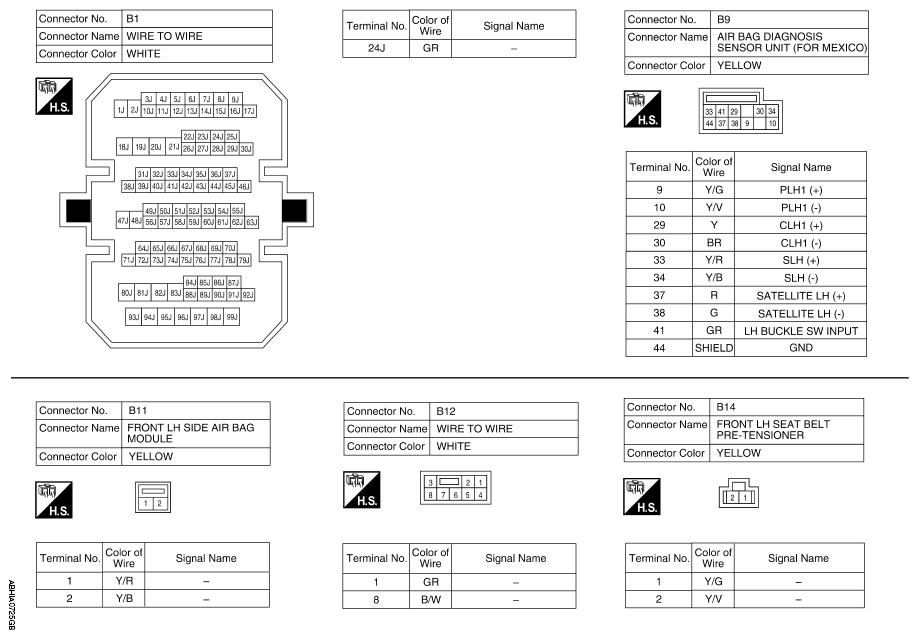

Fig 1: SRS Air Bag Control System Connector End Views - For Mexico (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

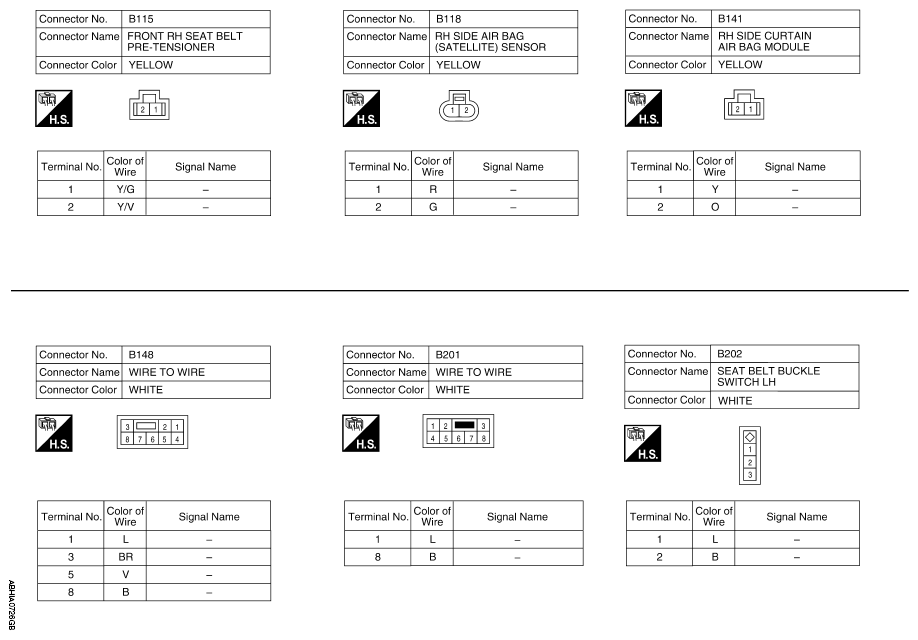

Fig 2: SRS Air Bag Control System Connector End Views - For Mexico (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

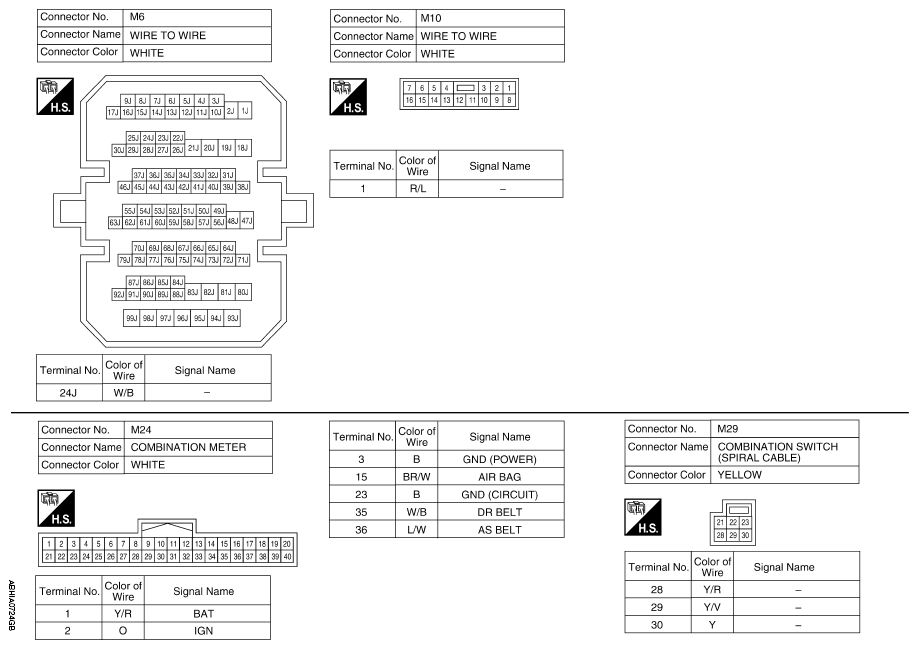

Fig 3: SRS Air Bag Control System Connector End Views - For Mexico (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

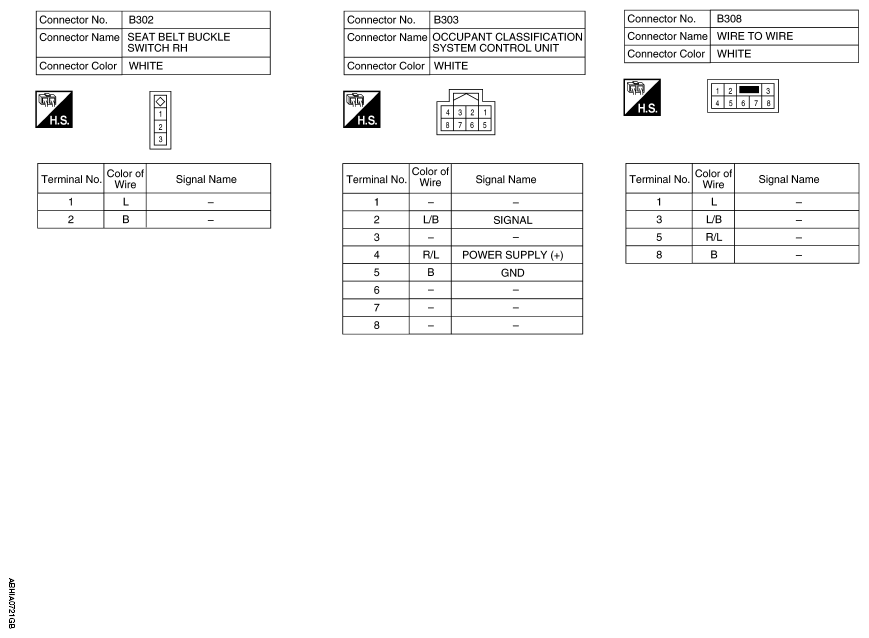

Fig 4: SRS Air Bag Control System Connector End Views - For Mexico (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: SRS Air Bag Control System Connector End Views - For Mexico (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: SRS Air Bag Control System Connector End Views - For Mexico (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: SRS Air Bag Control System Connector End Views - For Mexico (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: SRS Air Bag Control System Connector End Views - For Mexico (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

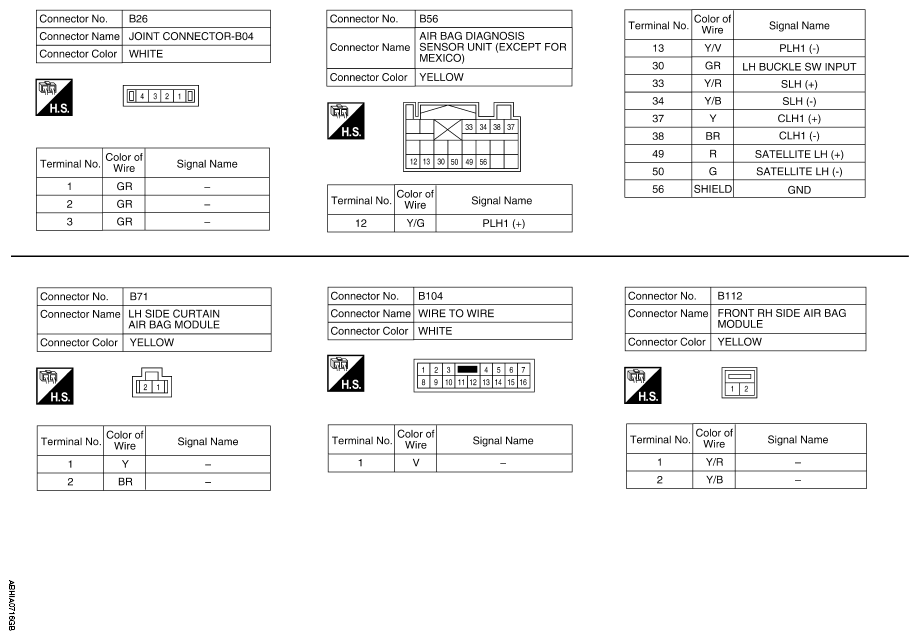

Fig 1: SRS Air Bag Control System Connector End Views - Except For Mexico (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 2: SRS Air Bag Control System Connector End Views - Except For Mexico (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: SRS Air Bag Control System Connector End Views - Except For Mexico (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: SRS Air Bag Control System Connector End Views - Except For Mexico (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 5: SRS Air Bag Control System Connector End Views - Except For Mexico (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 6: SRS Air Bag Control System Connector End Views - Except For Mexico (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: SRS Air Bag Control System Connector End Views - Except For Mexico (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 8: SRS Air Bag Control System Connector End Views - Except For Mexico (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
