Nissan-Datsun
›
2014
›
Maxima S
›
Repair and Diagnosis
›
Steering
›
Power Steering
›
Steering System
›
Removal And Installation
›
Hydraulic Line
›
Exploded View
Exploded View

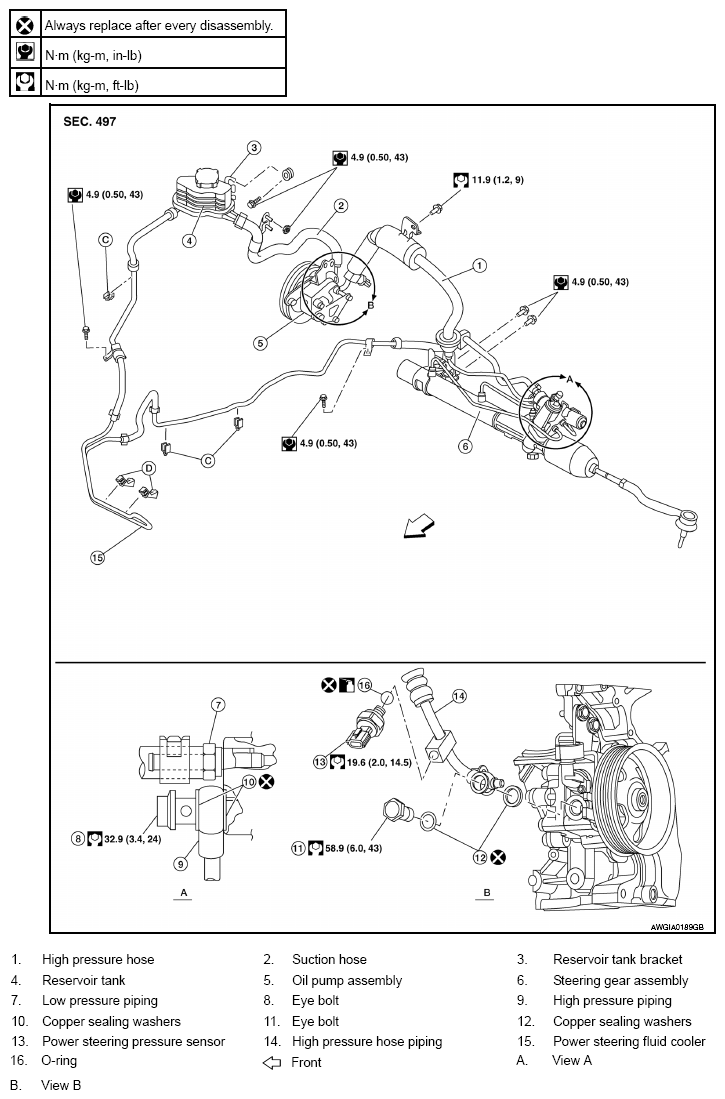

Fig 1: Exploded View Of Hydraulic Line With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
