Removal And Installation
›
Steering Column
›
Exploded View
Exploded View
Fig 1: Exploded View Of Steering Column - Without Electric Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

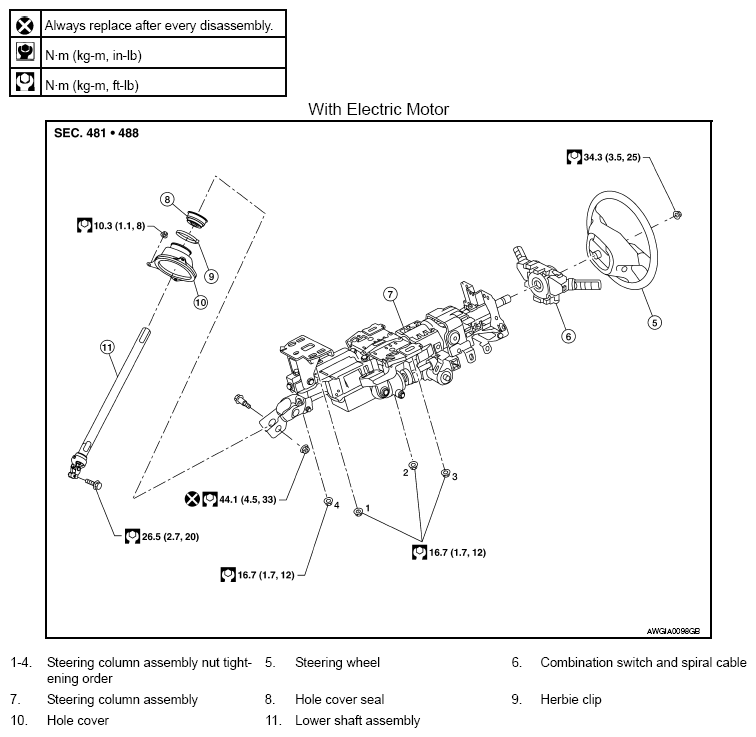

Fig 2: Exploded View Of Steering Column - With Electric Motor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
