Disassembly and Assembly: Notes

The steering column assembly without electric motor is not serviceable and must be replaced as an assembly.

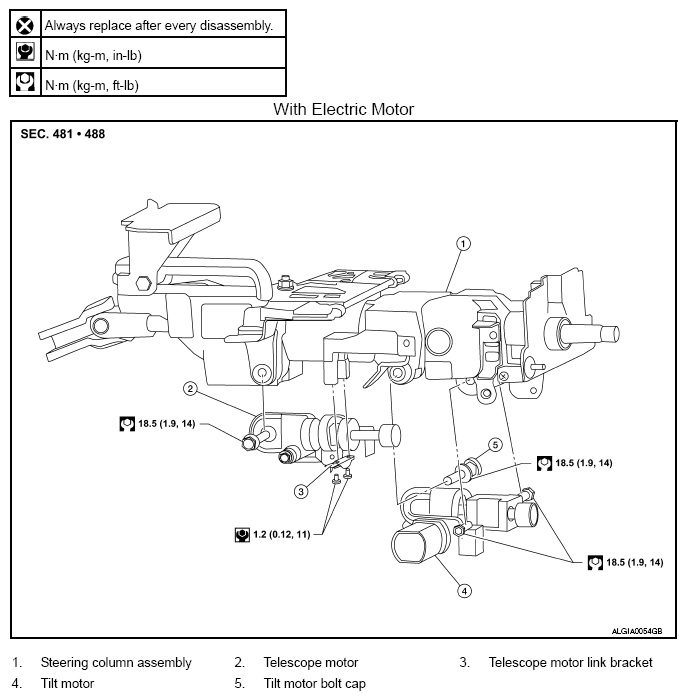

Fig 1: Exploded View Of Steering Column - With Electric Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
