Connector End Views

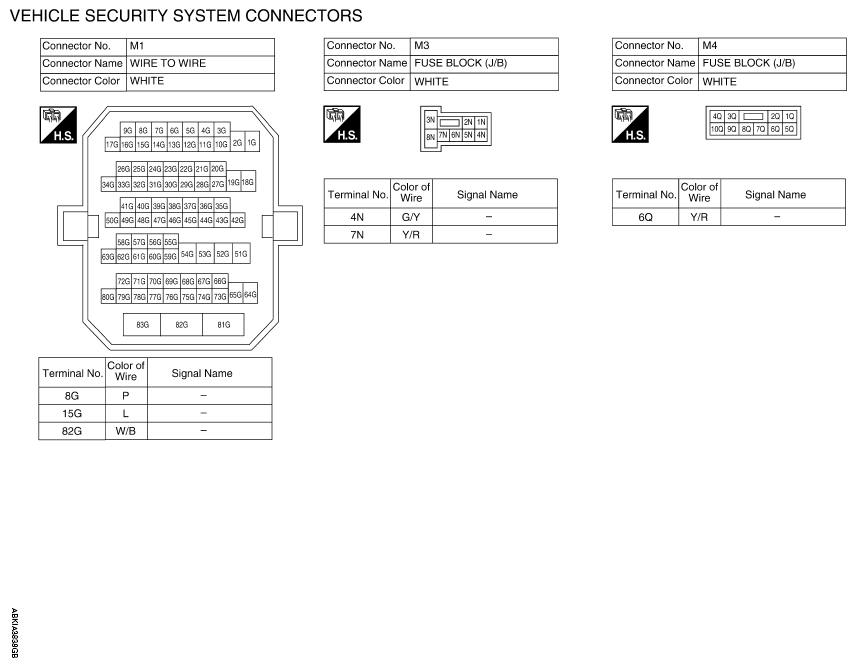

Fig 1: Vehicle Security System Connector End Views (1 Of 8)
G08924324Courtesy of NISSAN NORTH AMERICA, INC.

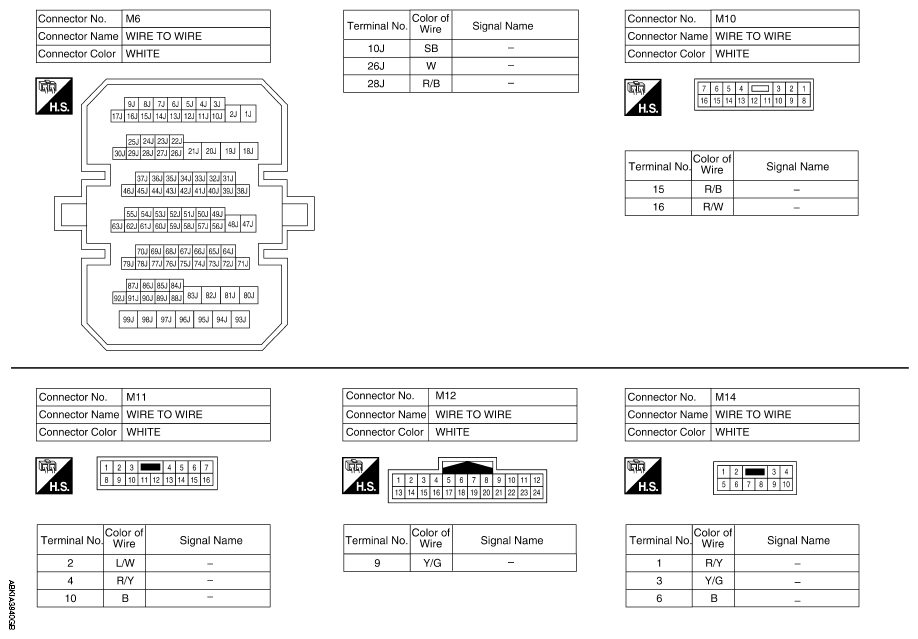

Fig 2: Vehicle Security System Connector End Views (2 Of 8)
G08924325Courtesy of NISSAN NORTH AMERICA, INC.

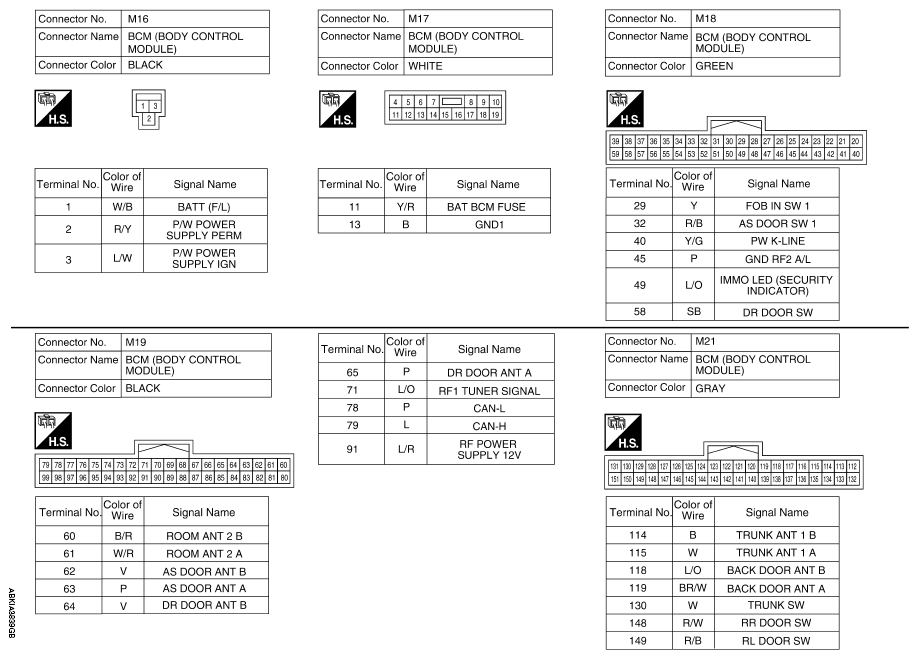

Fig 3: Vehicle Security System Connector End Views (3 Of 8)
G08924326Courtesy of NISSAN NORTH AMERICA, INC.

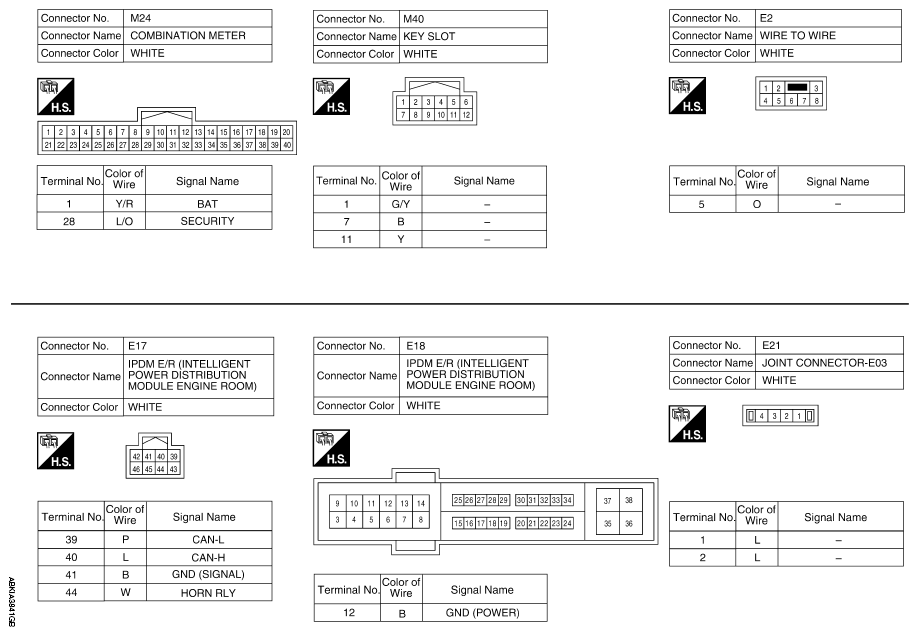

Fig 4: Vehicle Security System Connector End Views (4 Of 8)
G08924327Courtesy of NISSAN NORTH AMERICA, INC.

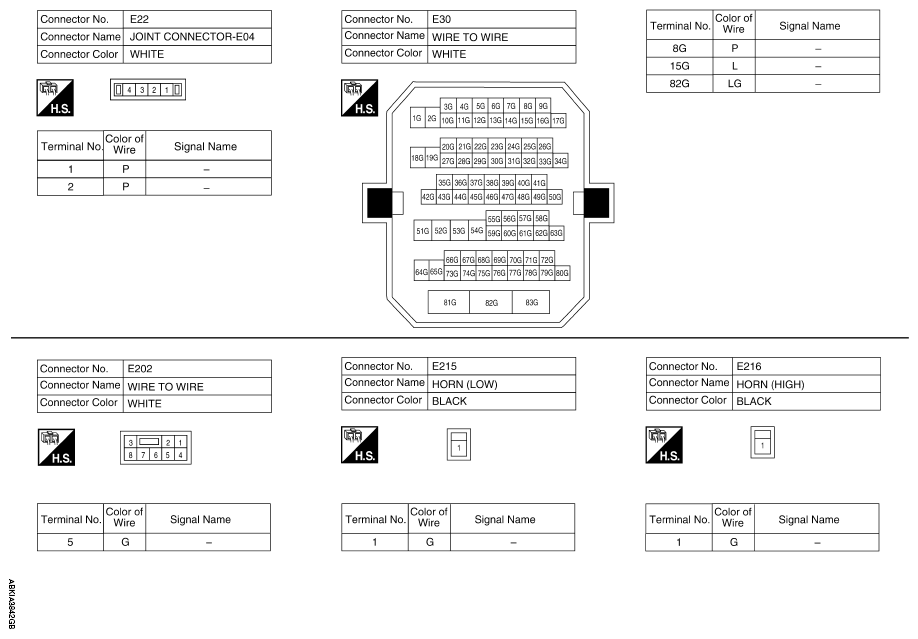

Fig 5: Vehicle Security System Connector End Views (5 Of 8)
G08924328Courtesy of NISSAN NORTH AMERICA, INC.

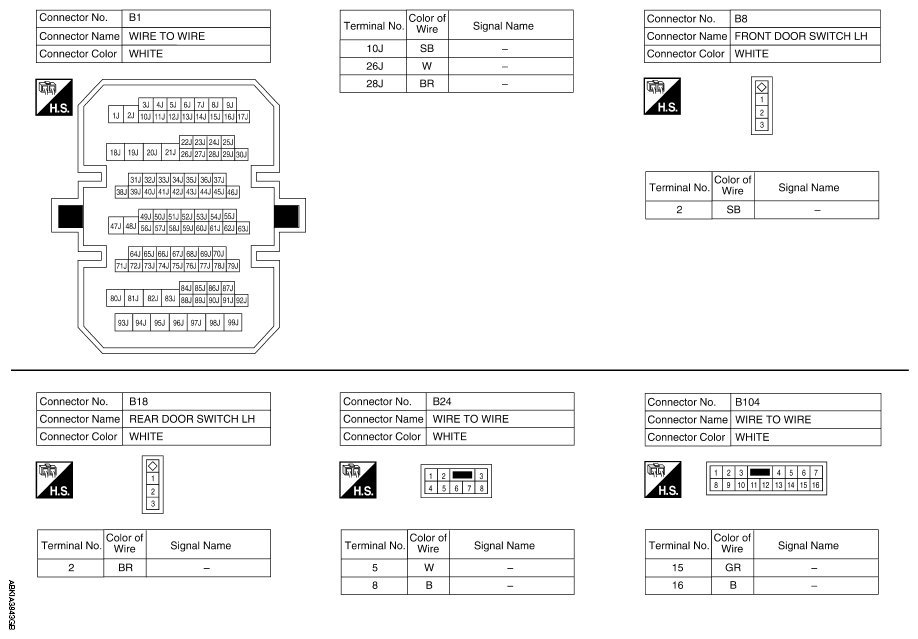

Fig 6: Vehicle Security System Connector End Views (6 Of 8)
G08924329Courtesy of NISSAN NORTH AMERICA, INC.

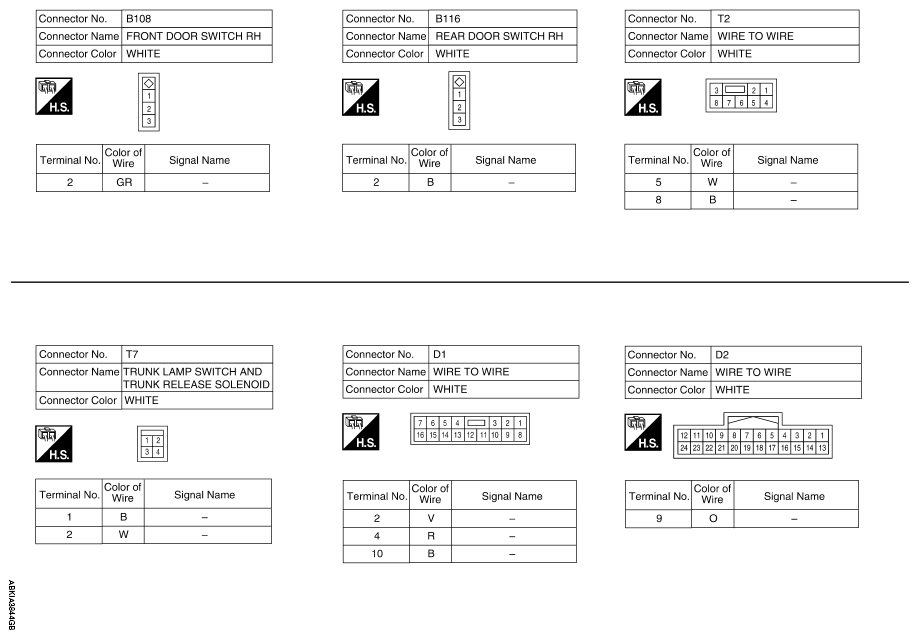

Fig 7: Vehicle Security System Connector End Views (7 Of 8)
G08924330Courtesy of NISSAN NORTH AMERICA, INC.

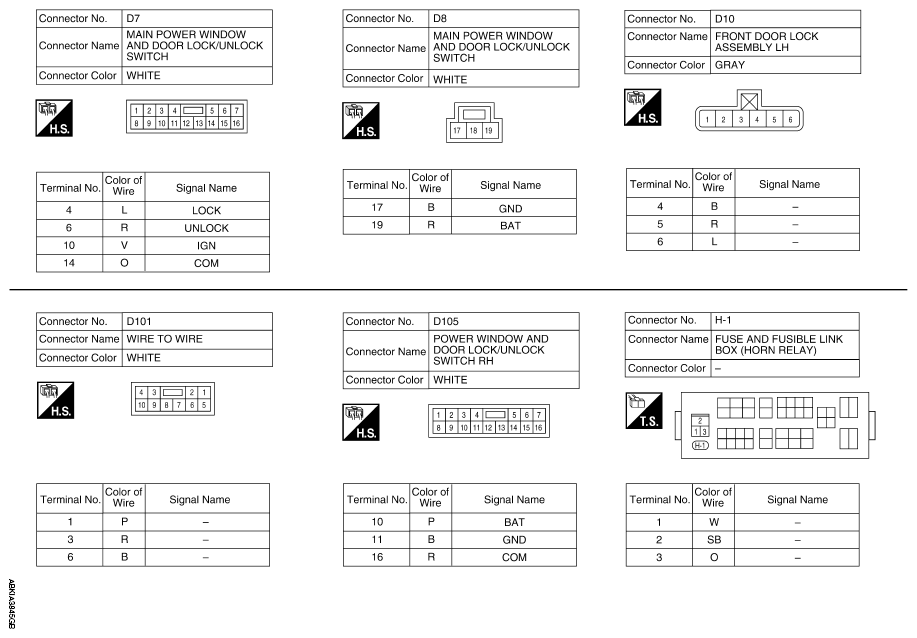

Fig 8: Vehicle Security System Connector End Views (8 Of 8)
G08924331Courtesy of NISSAN NORTH AMERICA, INC.
