ENGINE CONTROL SYSTEM: System Diagram

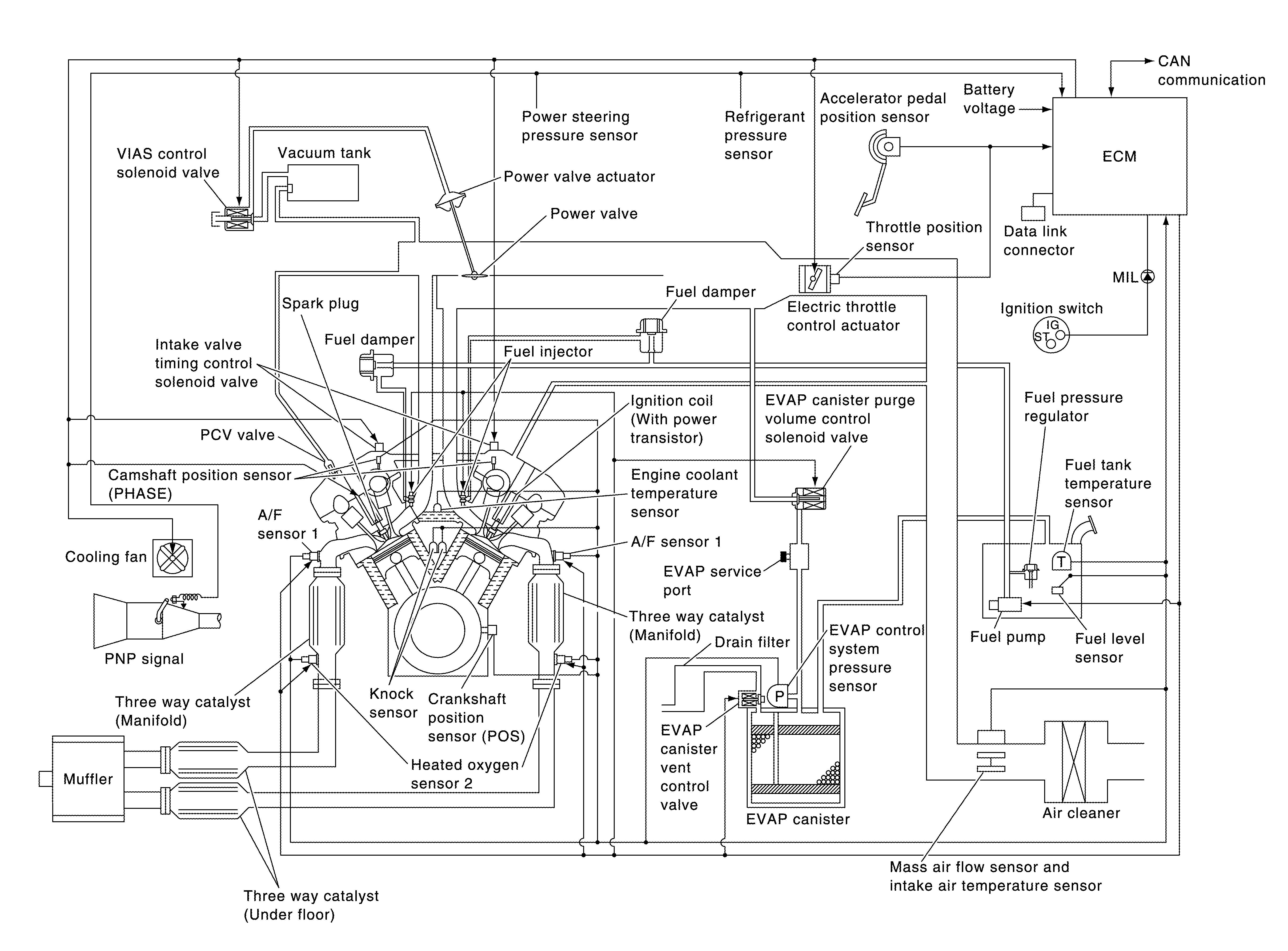

Fig 1: Engine Control - System Diagram
G08163111Courtesy of NISSAN NORTH AMERICA, INC.
