System Diagram

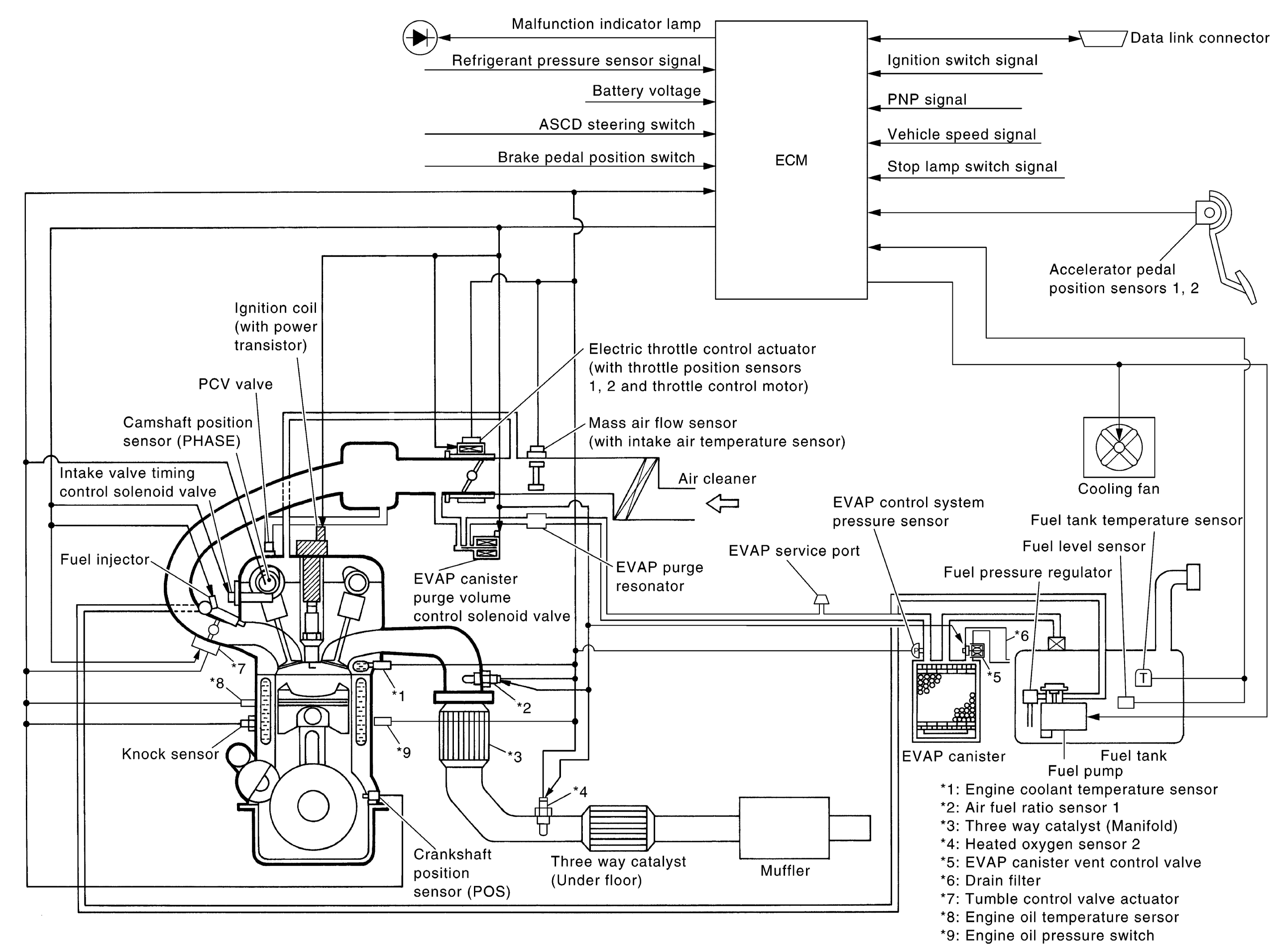

Fig 1: Engine Control - System Diagram
G08983725Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • Position switch and clutch pedal position switch are not used.
  • ASCD steering switch and brake pedal position switch are used in models with ASCD.
