Component Parts Location
Component Parts Location

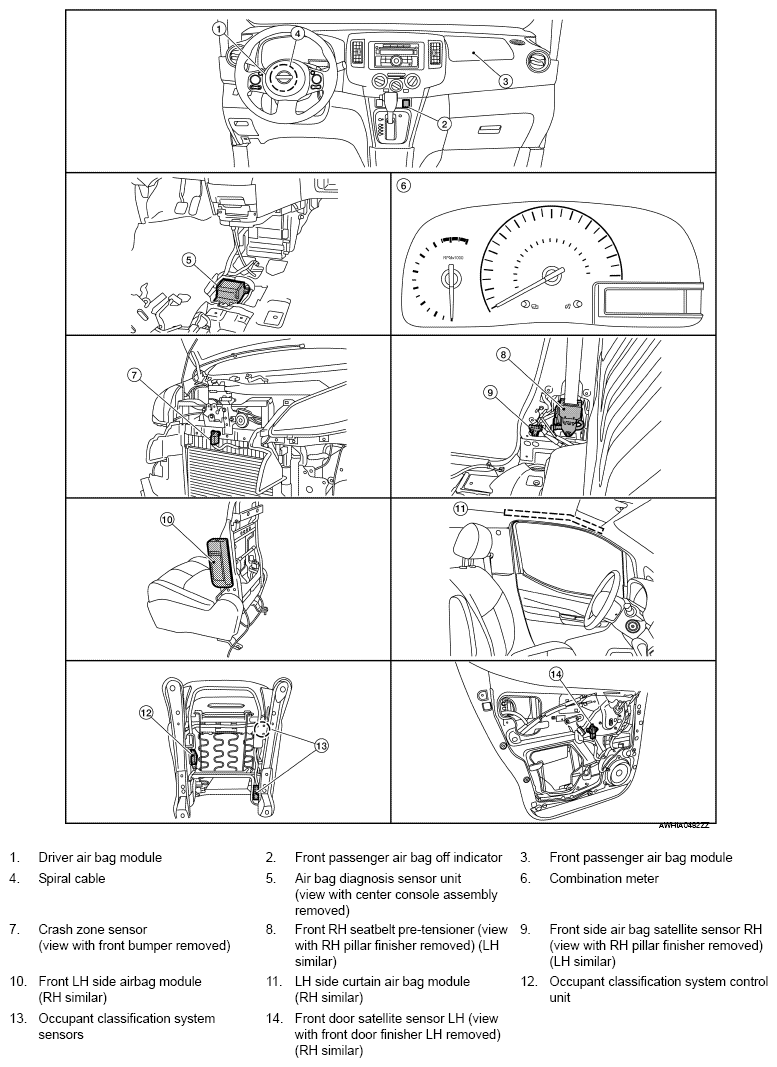

Fig 1: SRS Airbag Control System Components Location
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
