Engine Control System (Introduction) (Except Hybrid)
›
System Description
›
System
›
Throttle Control
›
THROTTLE CONTROL: System Description
›
System Diagram
System Diagram

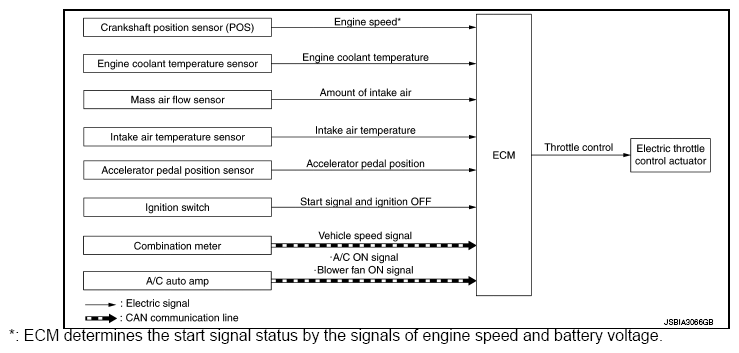

Fig 1: Throttle Control - System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
Courtesy of NISSAN NORTH AMERICA, INC.
