Engine Lubrication System Schematic

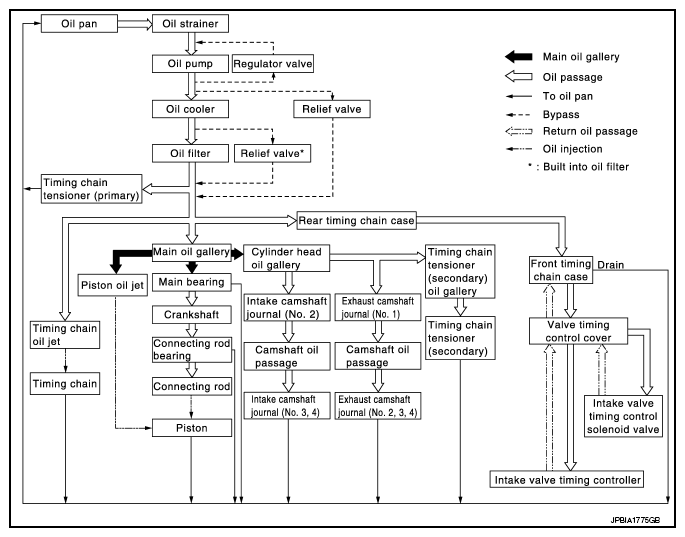

Fig 1: Engine Lubrication System Schematic
G09139939Courtesy of NISSAN NORTH AMERICA, INC.
