Nissan-Datsun
›
2014
›
Rogue S, FWD
›
Repair and Diagnosis
›
Engine Performance
›
Fuel Delivery
›
Fuel System
›
Disassembly And Assembly
›
Fuel Level Sensor Unit
›
Exploded View
Exploded View

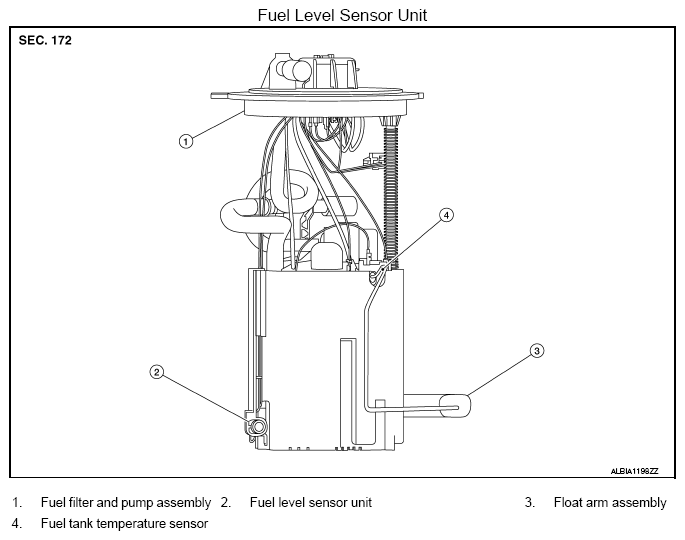

Fig 1: Exploded View Of Fuel Level Sensor Unit
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
