Combination Switch Matrix

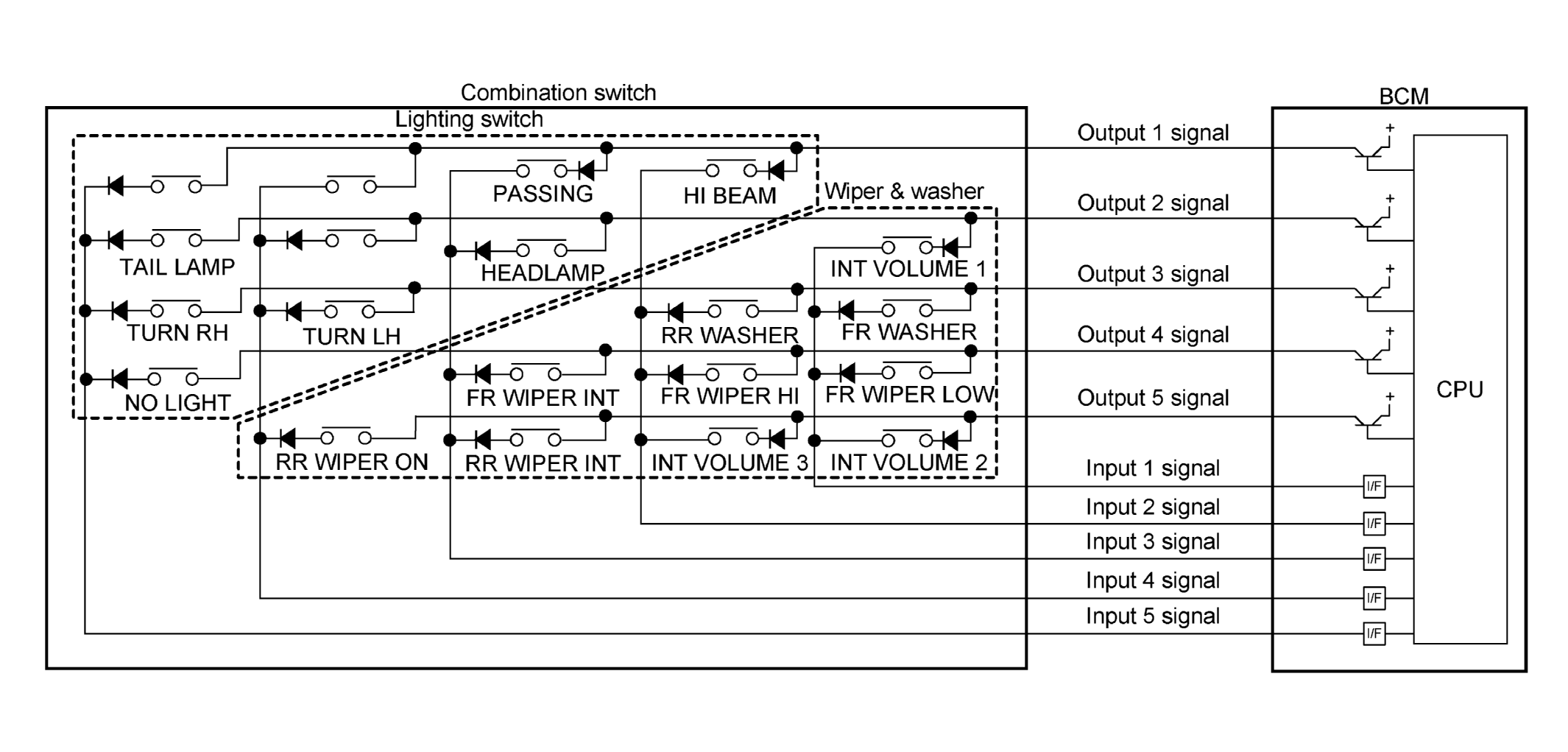

Fig 1: Combination Switch - Circuit Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5
OUTPUT 1	-	HI BEAM	PASSING	-	-
OUTPUT 2	INT VOLUME 1	-	HEADLAMP	-	TAIL LAMP
OUTPUT 3	FR WASHER	RR WASHER	-	TURN LH	TURN RH
OUTPUT 4	FR WIPER LOW	FR WIPER HI	FR WIPER INT	-	NO LIGHT
OUTPUT 5	INT VOLUME 2	INT VOLUME 3	RR WIPER INT	RR WIPER ON	-
