Function Description

The Moving Object Detection (MOD) system can help alert the driver of approaching vehicles or rear objects when the driver is backing out of a parking space.
The MOD system comprises of the rear view camera as the main detection system, which is located on the back door as illustrated.
The MOD system operates at speeds below 5 MPH (8 km/h) whenever the vehicle is in R (reverse).

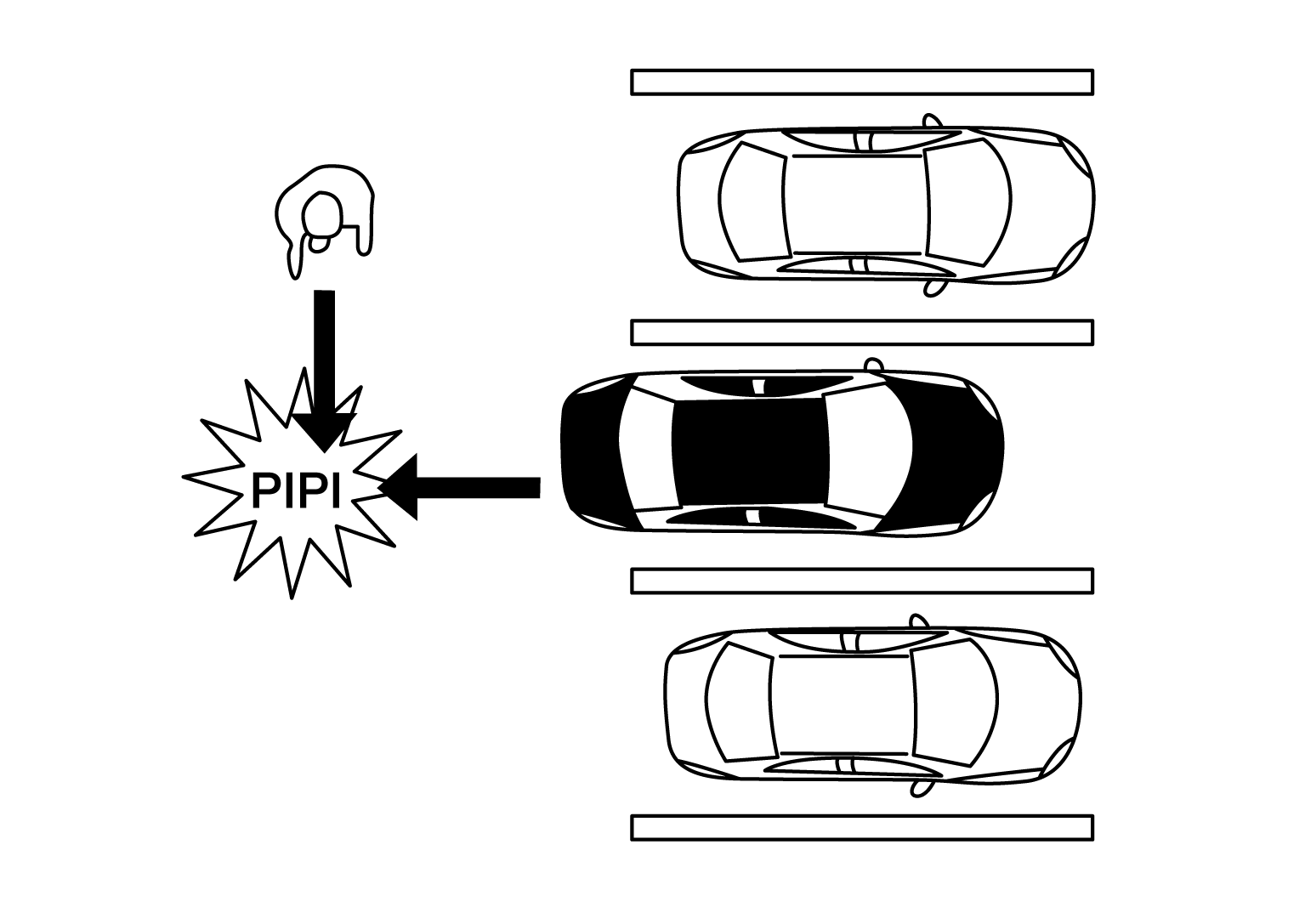

Fig 1: Identifying Moving Object Detection System
Courtesy of NISSAN NORTH AMERICA, INC.
The MOD system uses the rear view camera to detect approaching moving objects from either side.

Fig 2: Identifying MOD System Rear View Camera
Courtesy of NISSAN NORTH AMERICA, INC.
The MOD system can detect moving objects on either side as close as rear obstacles of up to approximately 10 feet (3 m).

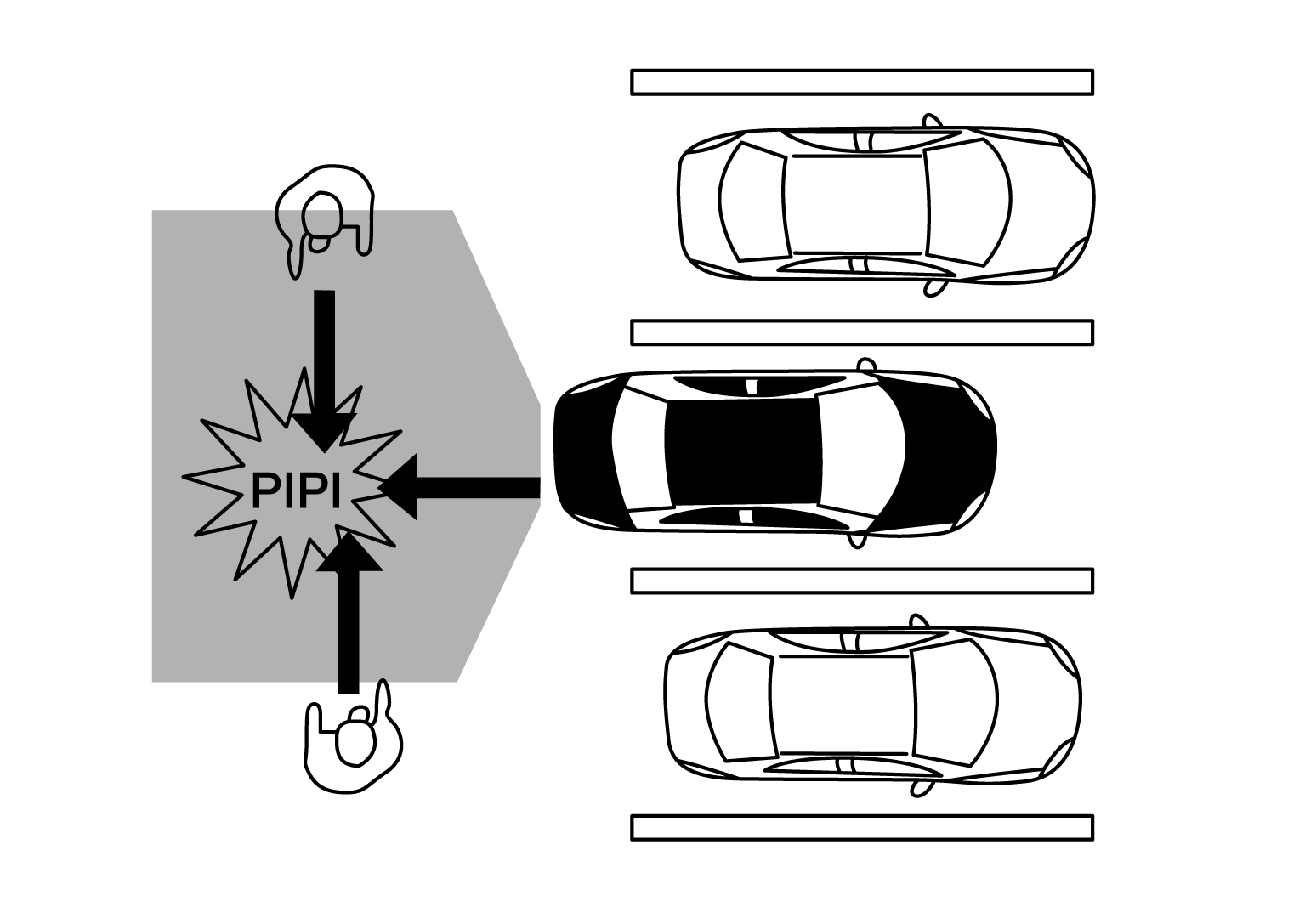

Fig 3: Identifying MOD System Detection Range

Courtesy of NISSAN NORTH AMERICA, INC.
