Exploded View

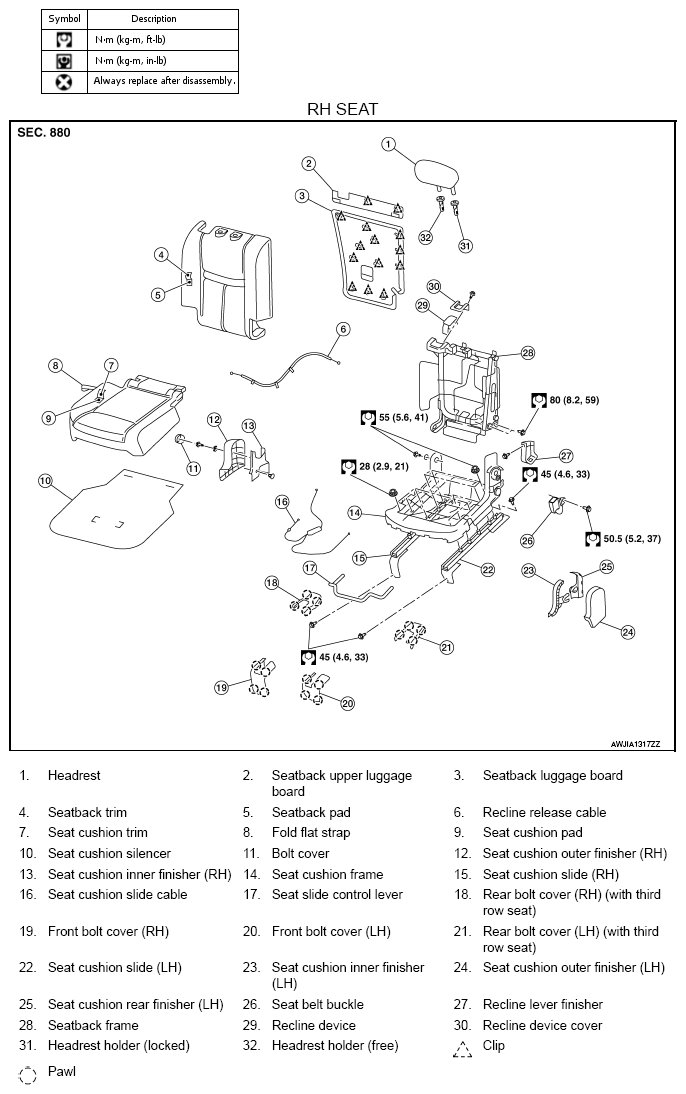

Fig 1: Exploded View Of Second Row Seats (RH Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

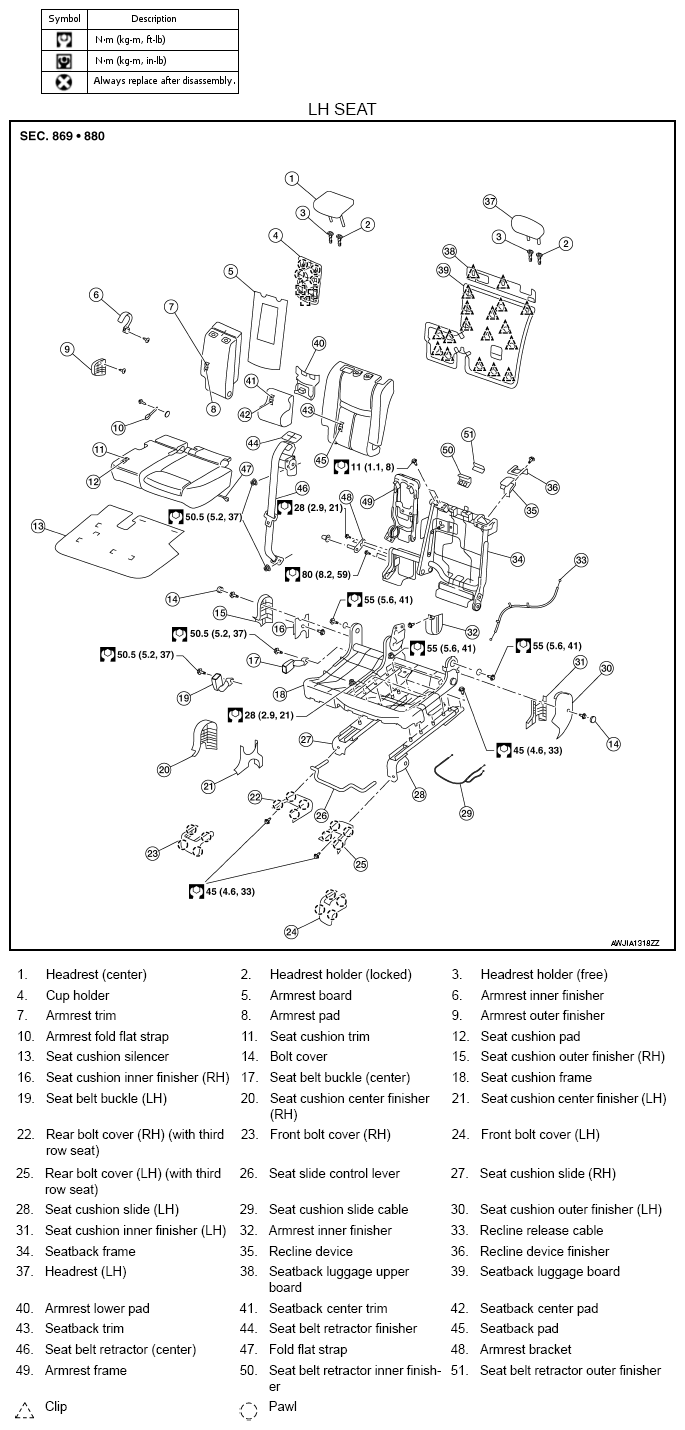

Fig 2: Exploded View Of Second Row Seats (LH Seat) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.
