Removal And Installation
›
Third Row Seats
›
Exploded View
Exploded View

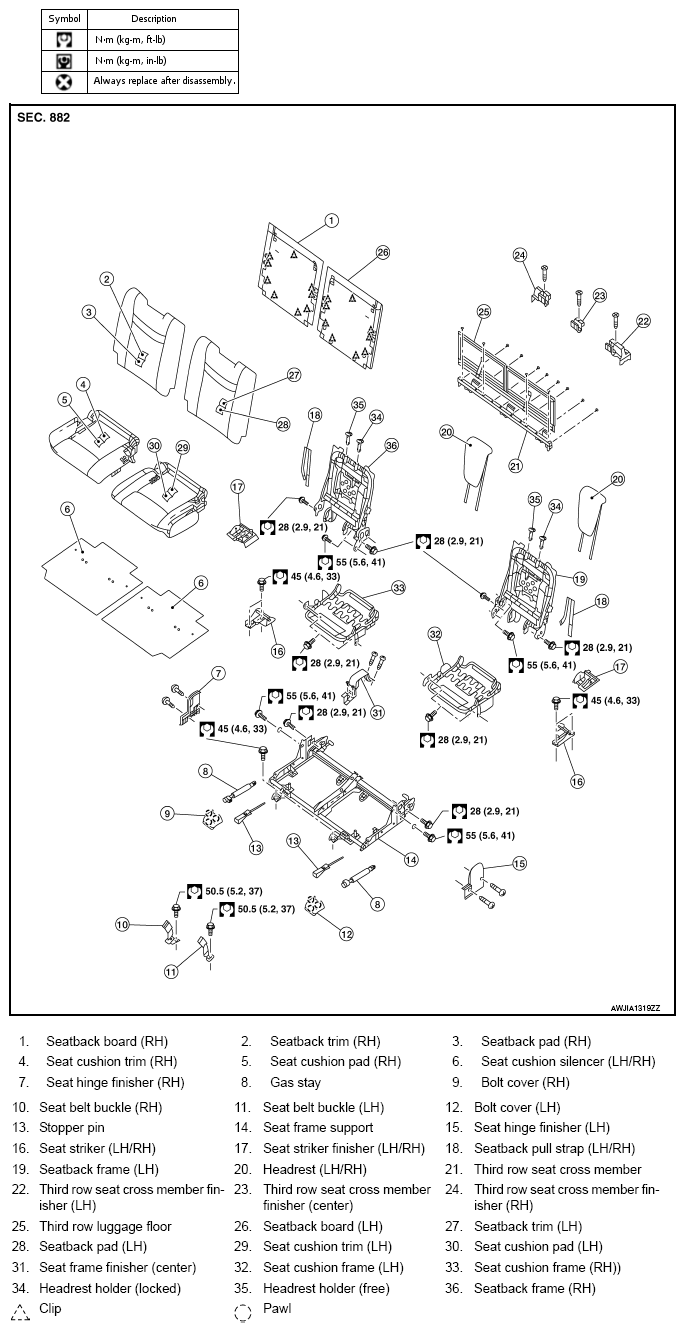

Fig 1: Exploded View Of Third Row Seats With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
