Unit Disassembly And Assembly
›
Front Seat
›
Exploded View
Exploded View

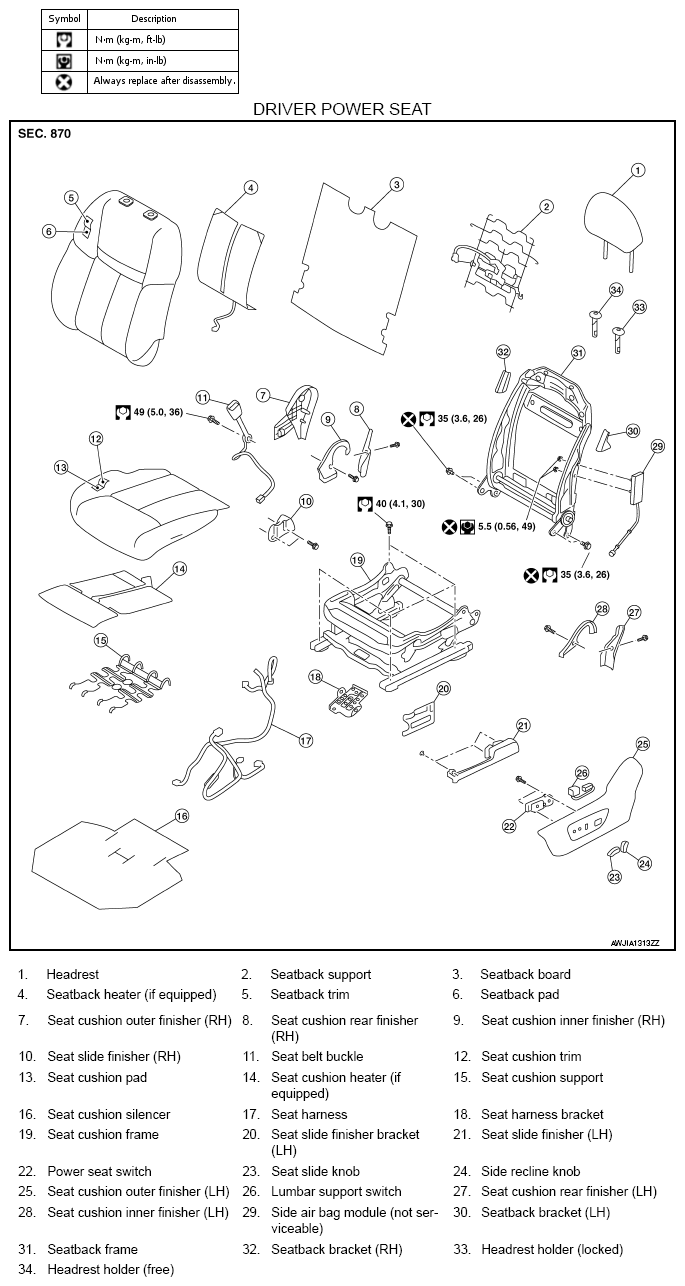

Fig 1: Exploded View Of Front Seat (Driver Power Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

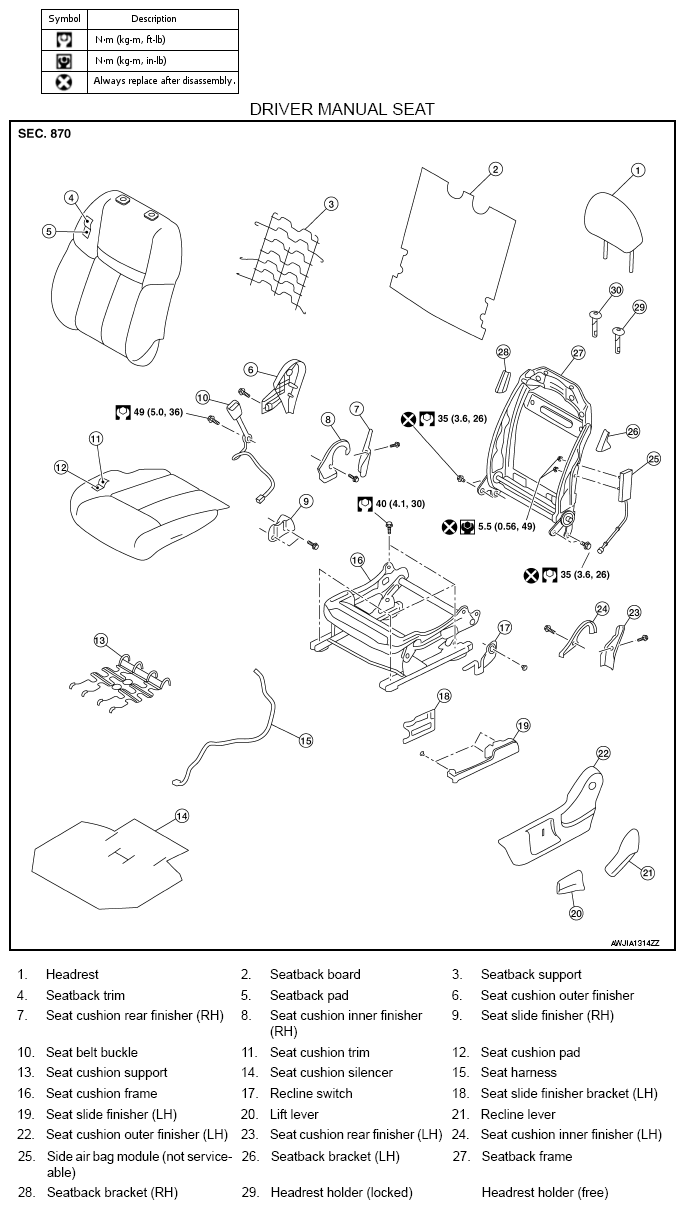

Fig 2: Exploded View Of Front Seat (Driver Manual Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

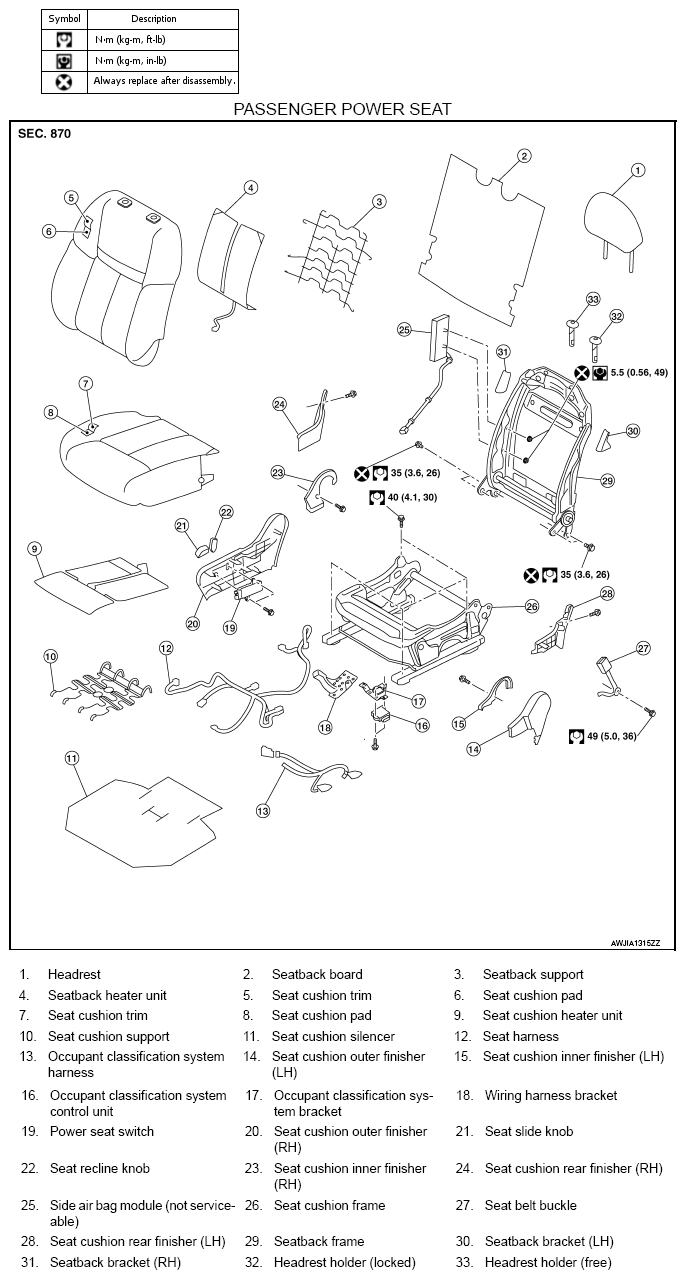

Fig 3: Exploded View Of Front Seat (Passenger Power Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.

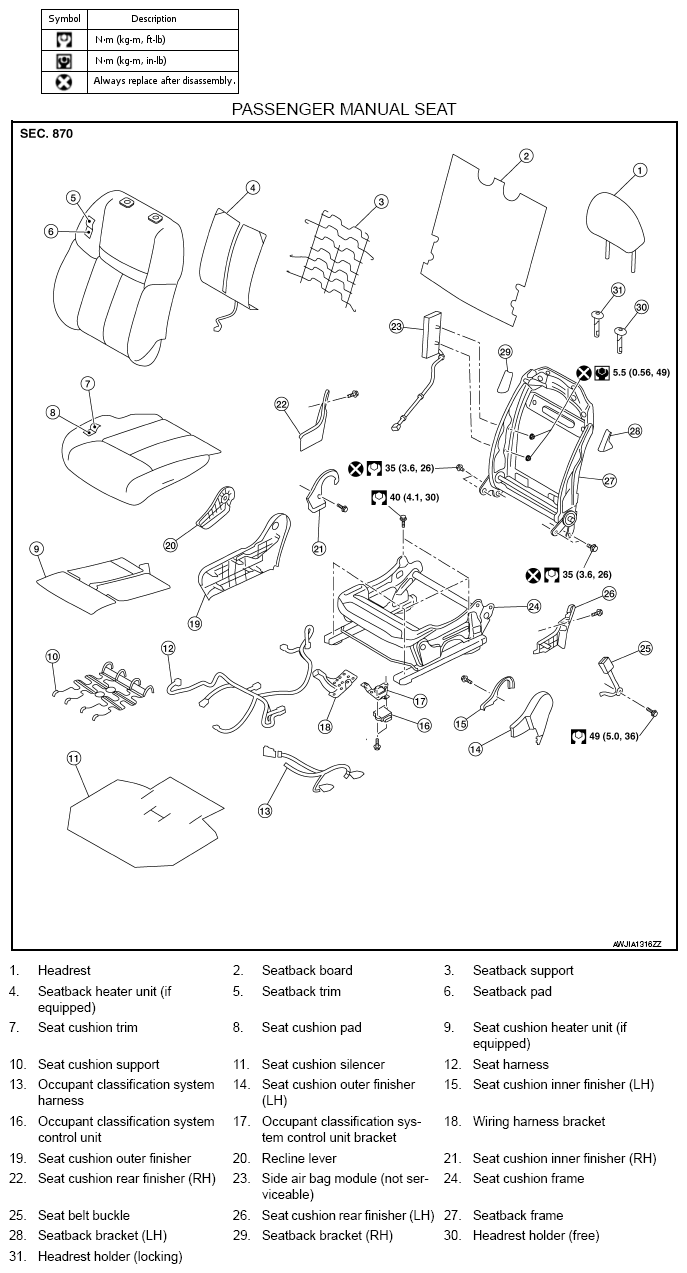

Fig 4: Exploded View Of Front Seat (Passenger Manual Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
