EVAP Canister Vent Control Valve
›
Exploded View
Exploded View

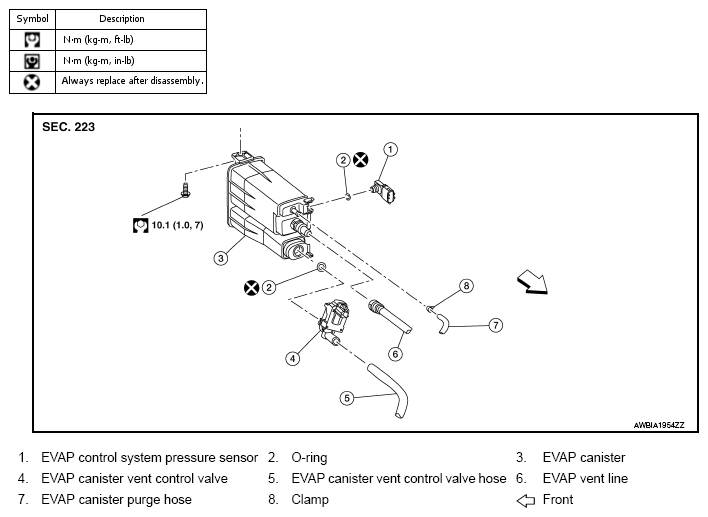

Fig 1: Exploded View Of EVAP Canister Vent Control Valve With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
