Fuel Tank
›
Fwd
›
FWD: Exploded View
FWD: Exploded View

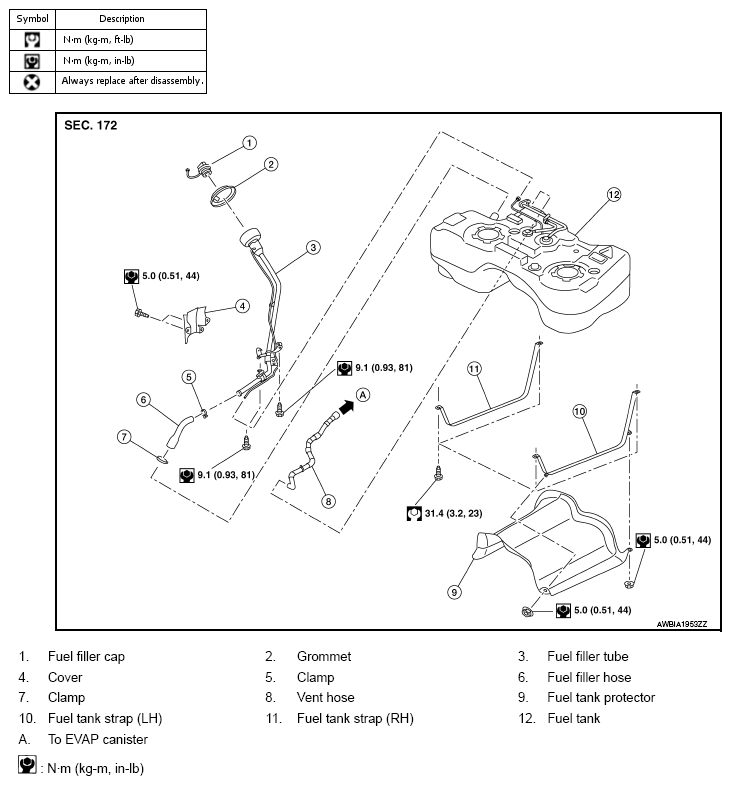

Fig 1: Exploded View Of Fuel Tank (FWD) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
