Component Parts Location

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

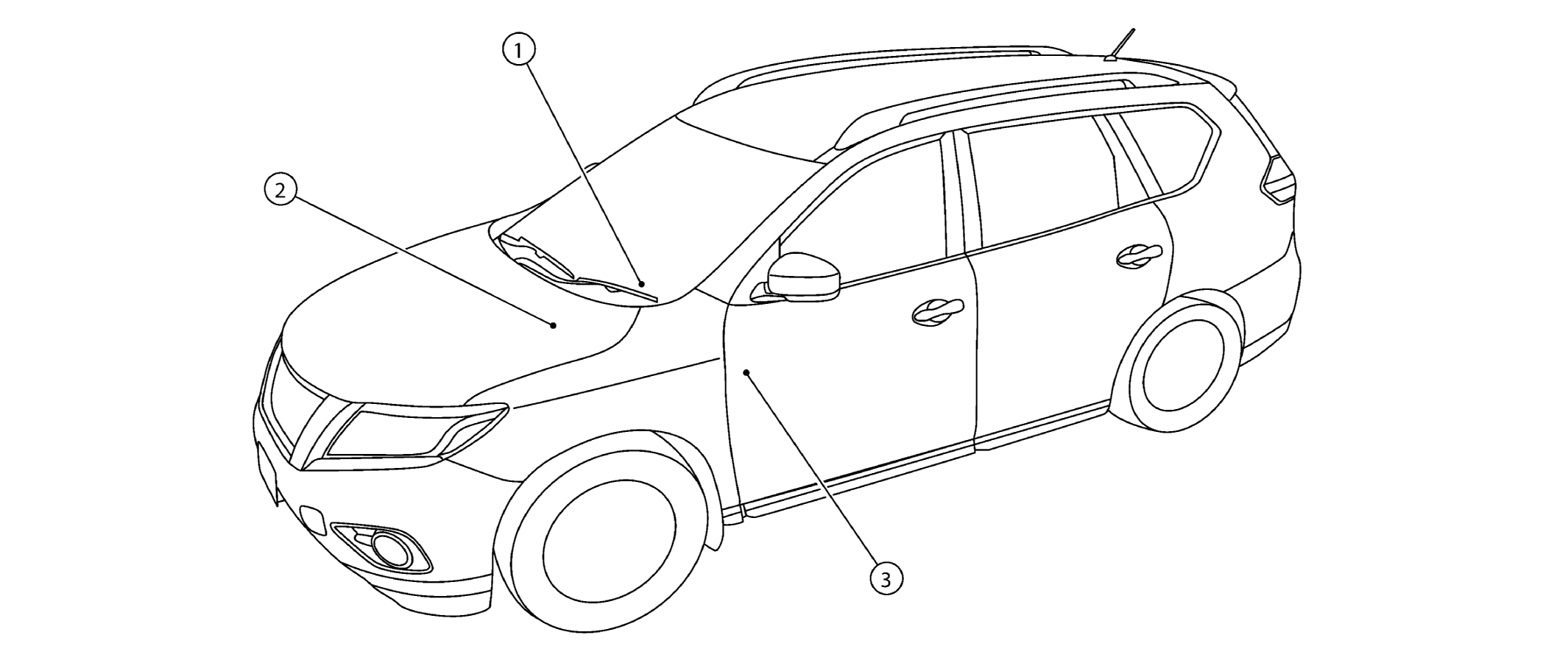

Fig 1: Power Consumption Control System Components Location
GNSALMIA0708ZZ-708Courtesy of NISSAN NORTH AMERICA, INC.
1. Combination meter
Refer to COMPONENT PARTS LOCATION .		 2. IPDM E/R
Refer to COMPONENT PARTS LOCATION .		 3. BCM
Refer to COMPONENT PARTS LOCATION .
