Repair and Diagnosis
›
Steering
›
Power Steering
›
Steering Control System
›
Wiring Diagram
›
EPS System
›
Connector End Views
Connector End Views

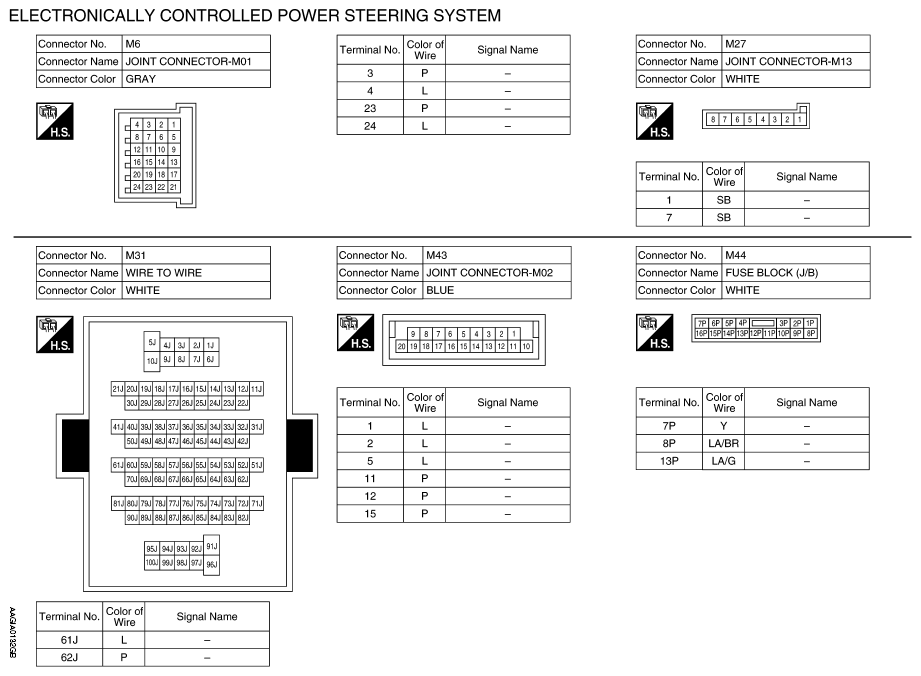

Fig 1: Electronically Controlled Power Steering System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

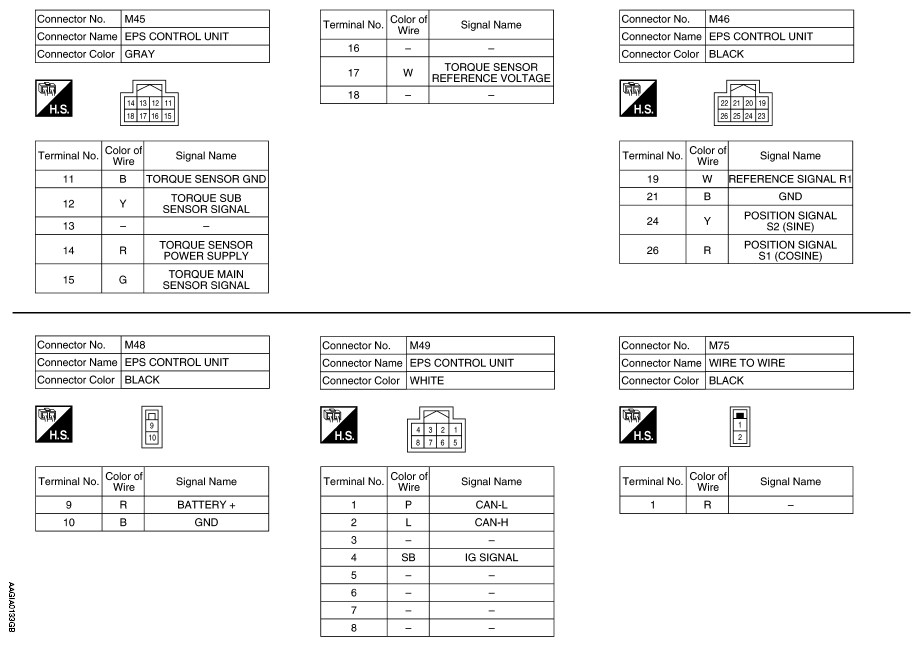

Fig 2: Electronically Controlled Power Steering System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

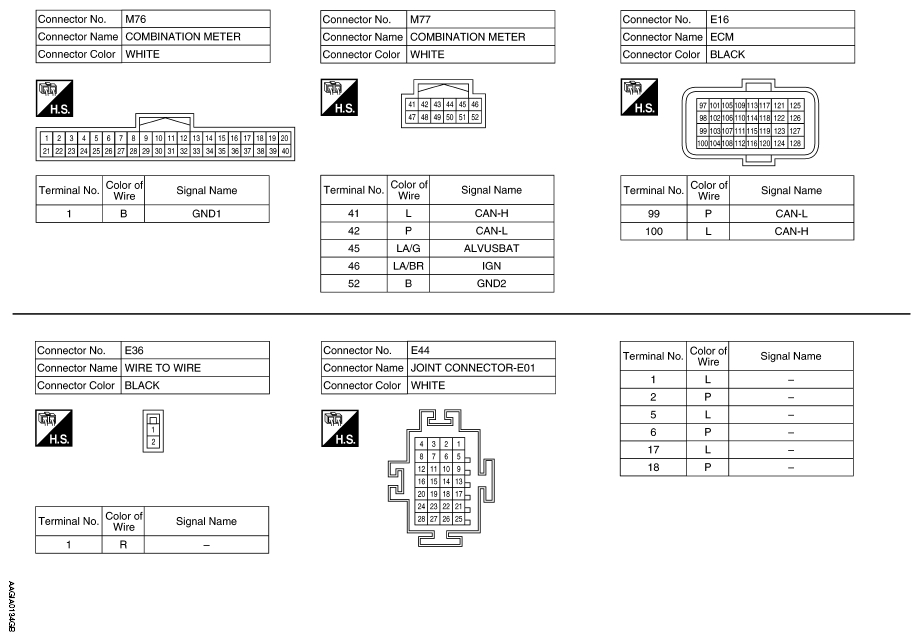

Fig 3: Electronically Controlled Power Steering System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

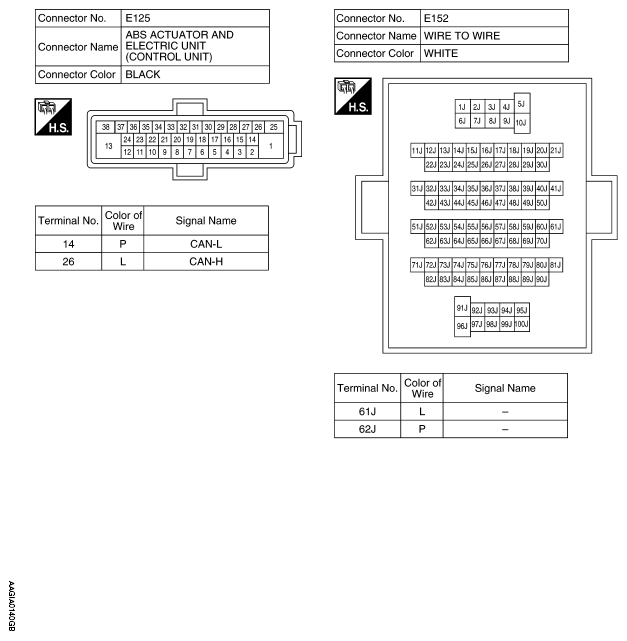

Fig 4: Electronically Controlled Power Steering System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
