Exploded View
›
Disassembly And Assembly
Disassembly And Assembly

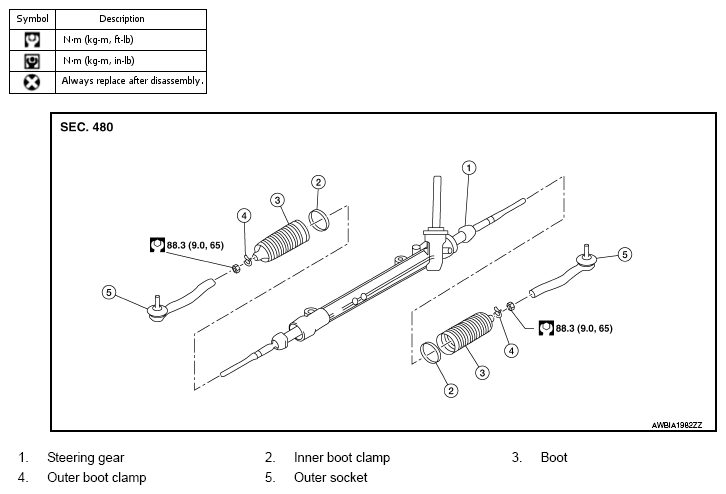

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
