System Description
›
Structure And Operation
›
Sectional View
Sectional View

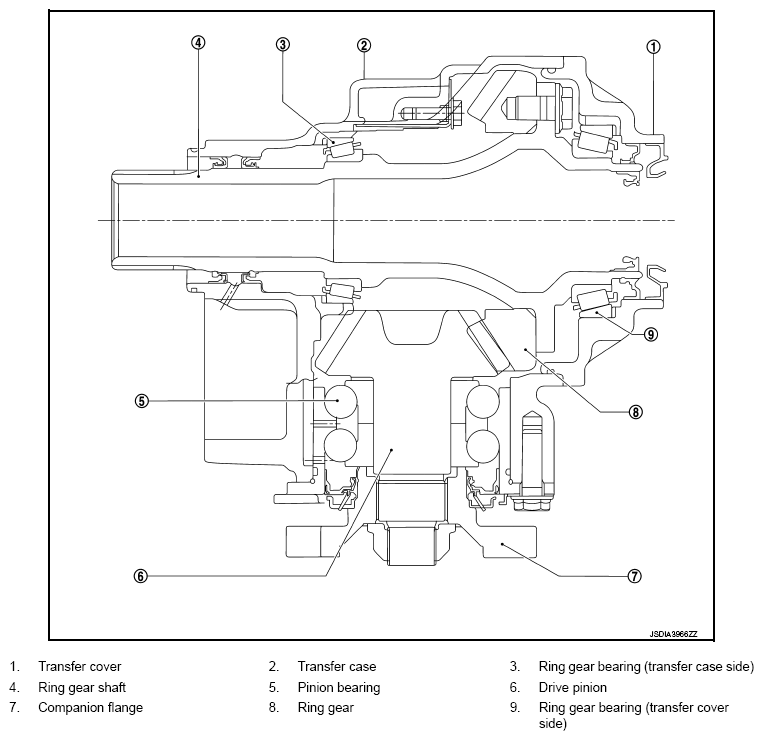

Fig 1: Sectional View Of Driveline Assembly
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
