Nissan-Datsun
›
2014
›
Rogue SL, AWD
›
Repair and Diagnosis
›
Transmission
›
Transmission Control Systems
›
Drive Mode System
›
Wiring Diagram
›
Sport Mode System
›
Connector End Views
Connector End Views

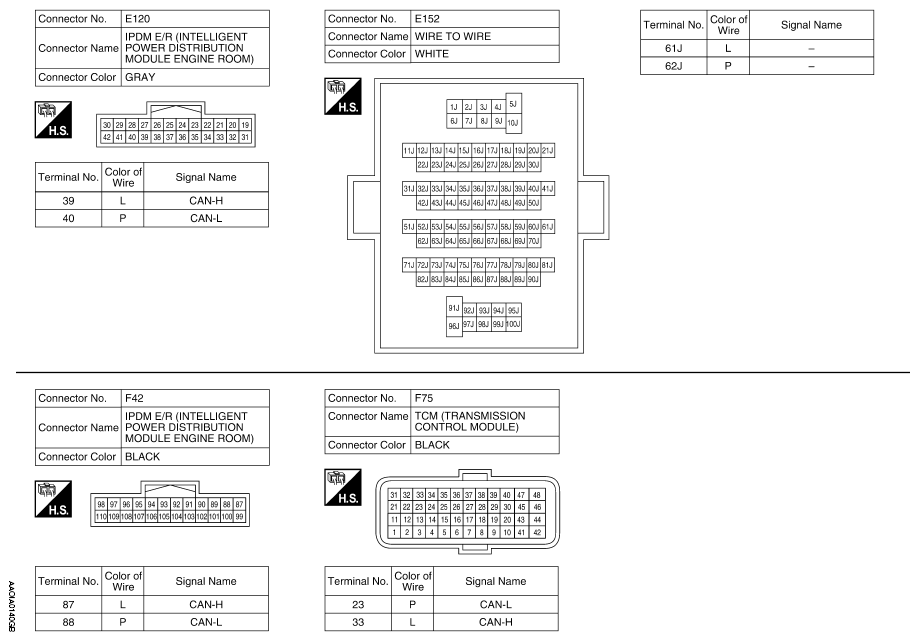

Fig 1: Sport Mode System Connector End Views (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

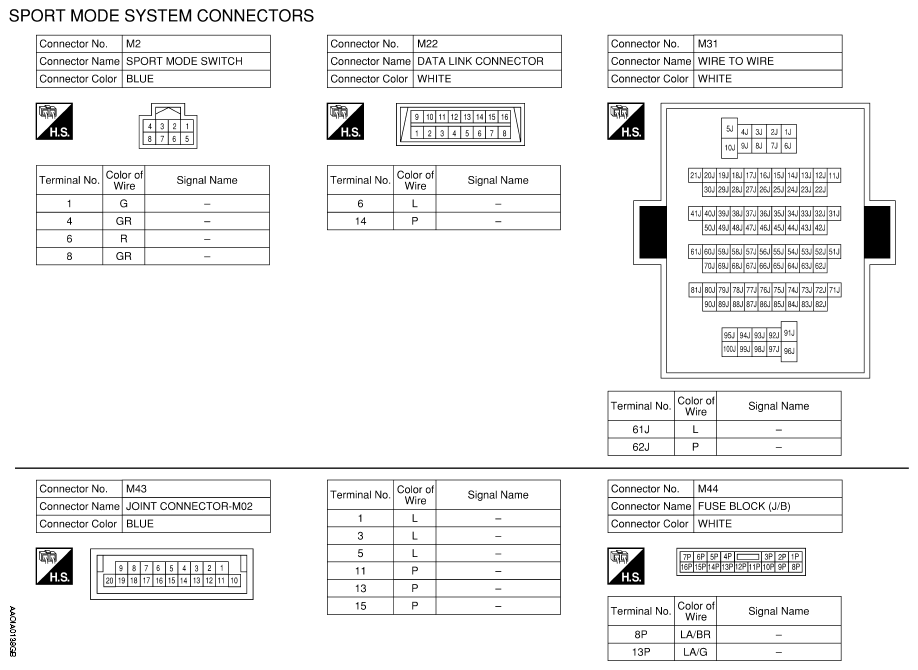

Fig 2: Sport Mode System Connector End Views (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

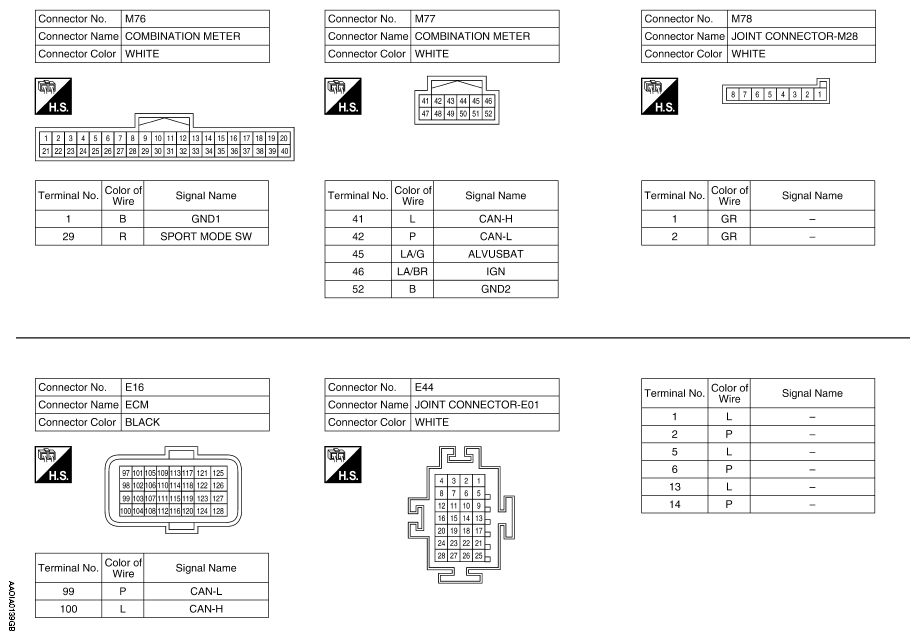

Fig 3: Sport Mode System Connector End Views (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
