Exploded View
›
Removal
Exploded View: Removal

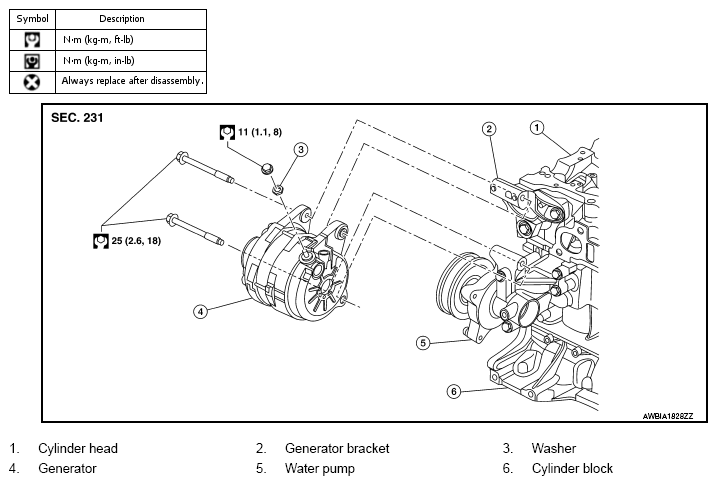

Fig 1: Exploded View Of Generator With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
