System Diagram

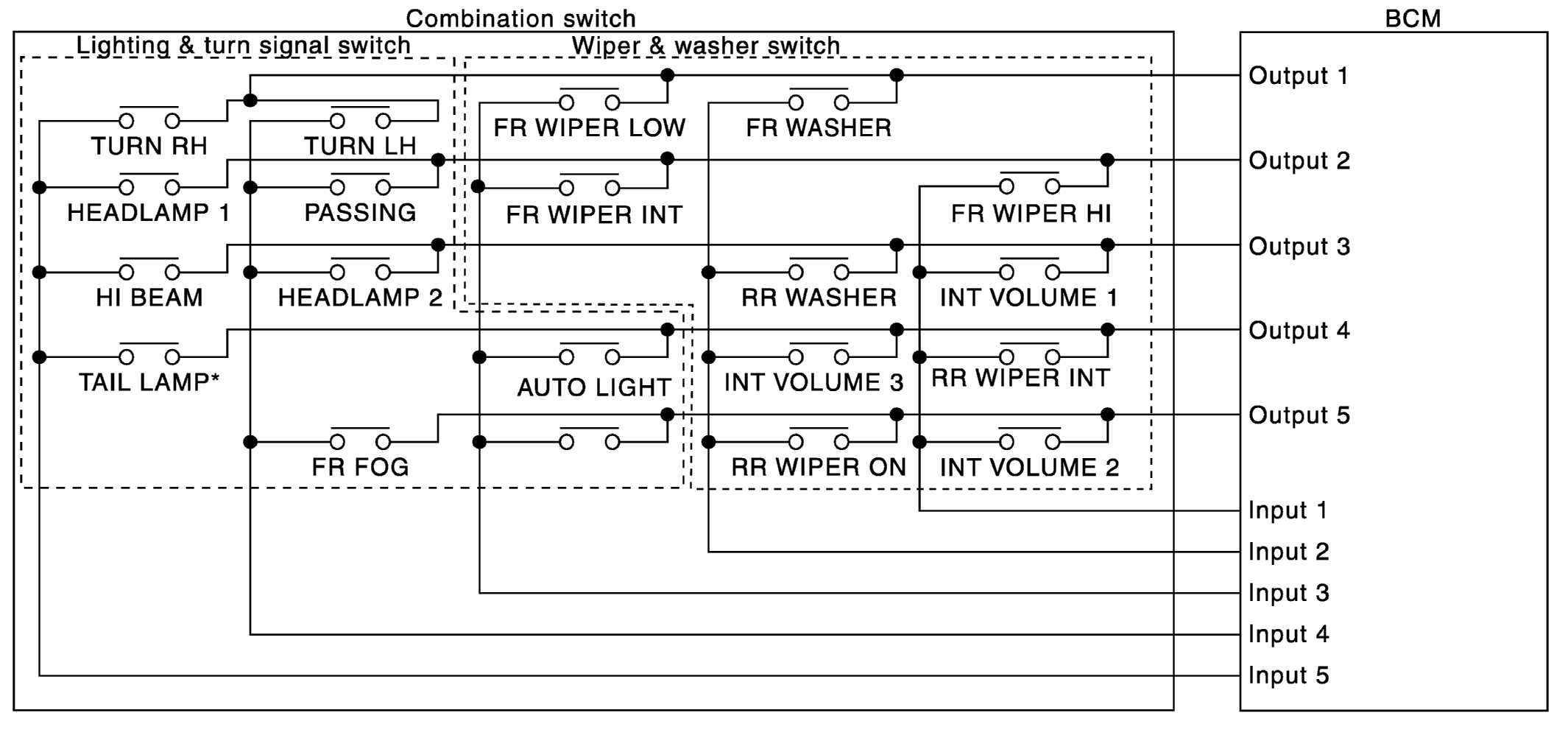

Fig 1: Combination Switch Reading - System Diagram
G07135740Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
  • *: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
  • FR FOG and AUTO LIGHT switch are not applicable.
