Nissan-Datsun
›
2014
›
Rogue Select AWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Power Window Control System
›
Ecu Diagnosis Information
›
BCM (Body Control Module)
›
Reference Value
›
Terminal Layout
Terminal Layout

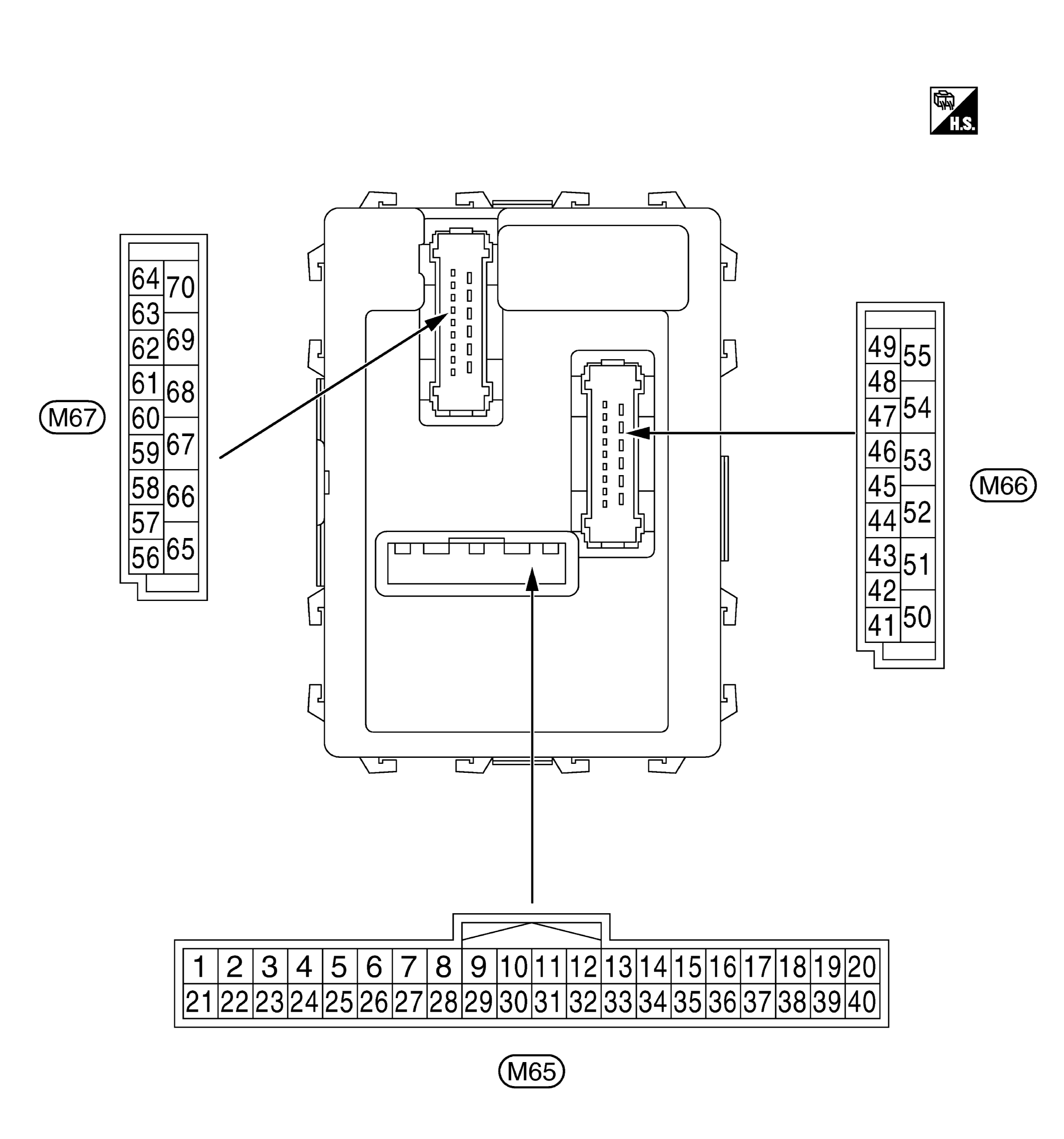

Fig 1: Body Control Module Terminal Layout
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
