Yaw Rate/Side/DECEL G Sensor
›
Exploded View
Exploded View

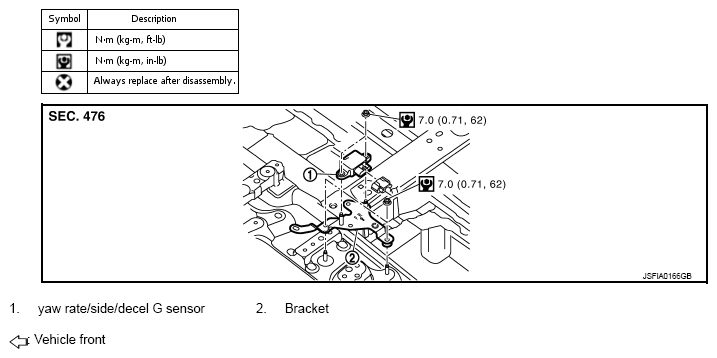

Fig 1: Exploded View Of YAW RATE/SIDE/DECEL G Sensor
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbol in the figure.
