DTC/Circuit Diagnosis
›
Charging System
›
Connector End Views
Connector End Views

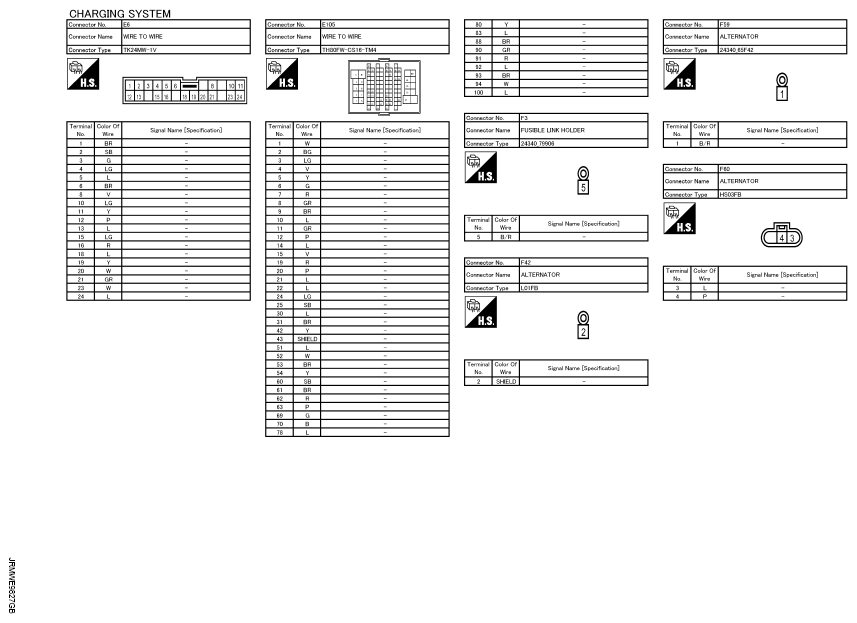

Fig 1: Charging System Connector End View (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

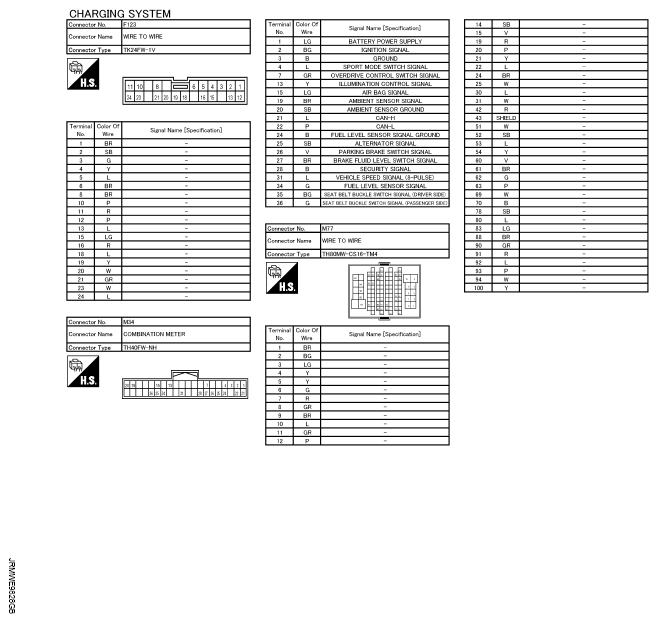

Fig 2: Charging System Connector End View (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
