Evaporative Emission Line Drawing

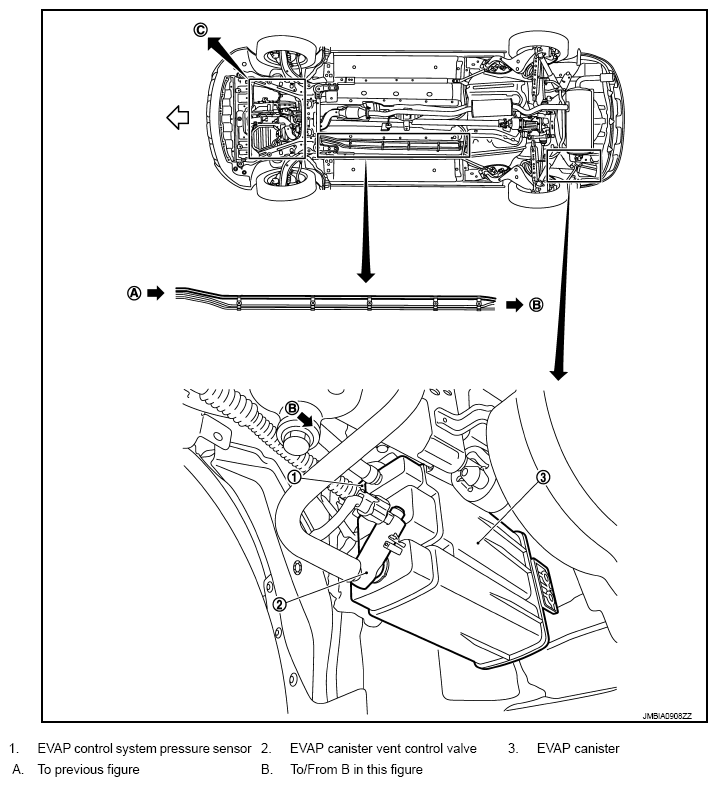

Fig 1: Identifying Evaporative Emission Line Drawing (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

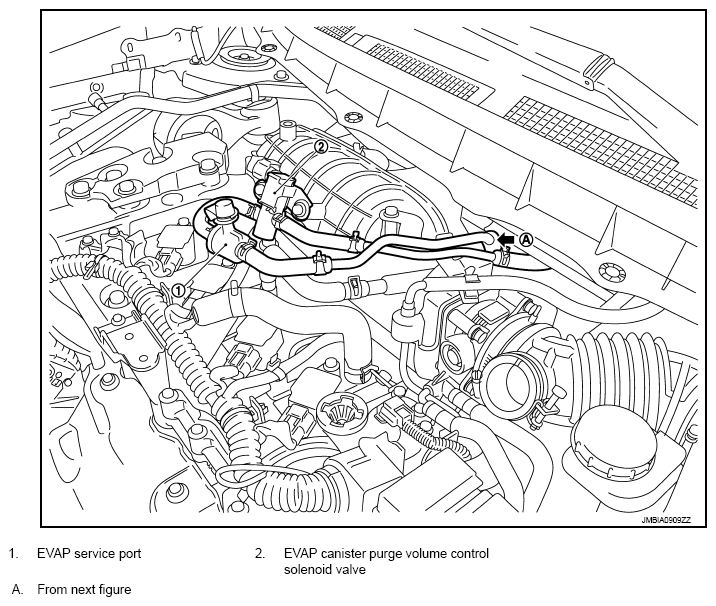

Fig 2: Identifying Evaporative Emission Line Drawing (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
