Front Coil Spring And Strut
›
Exploded View
Exploded View

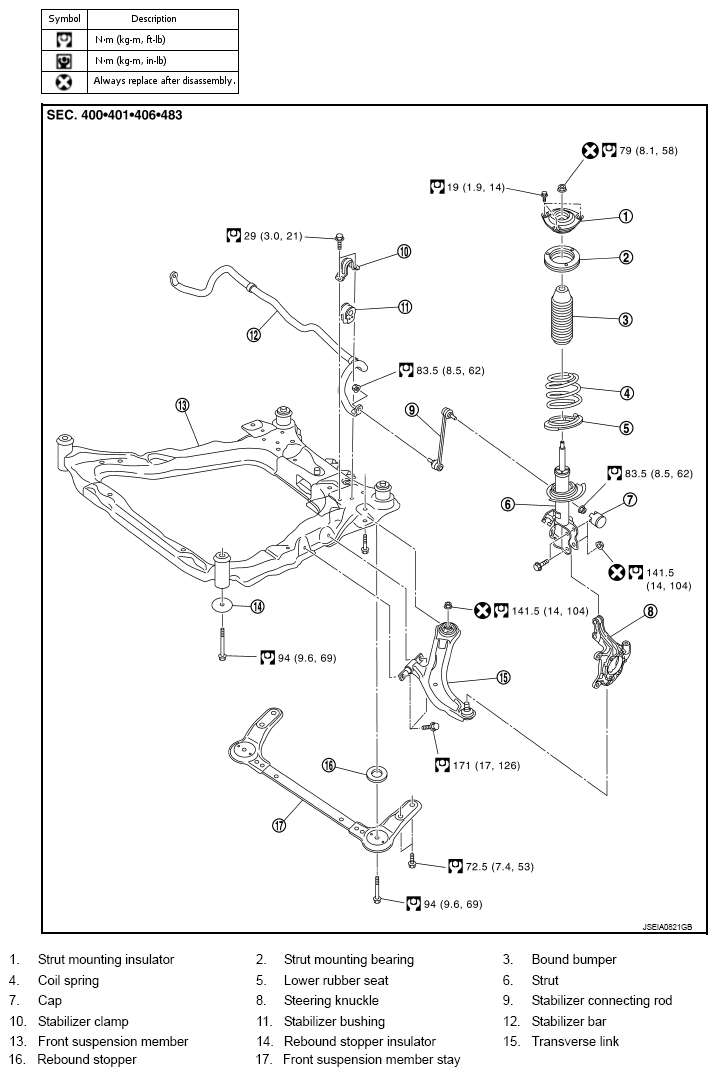

Fig 1: Exploded View Of Front Coil Spring And Strut
Courtesy of NISSAN NORTH AMERICA, INC.
Refer to "
COMPONENTS
" for symbols in the figure.
