Exploded View

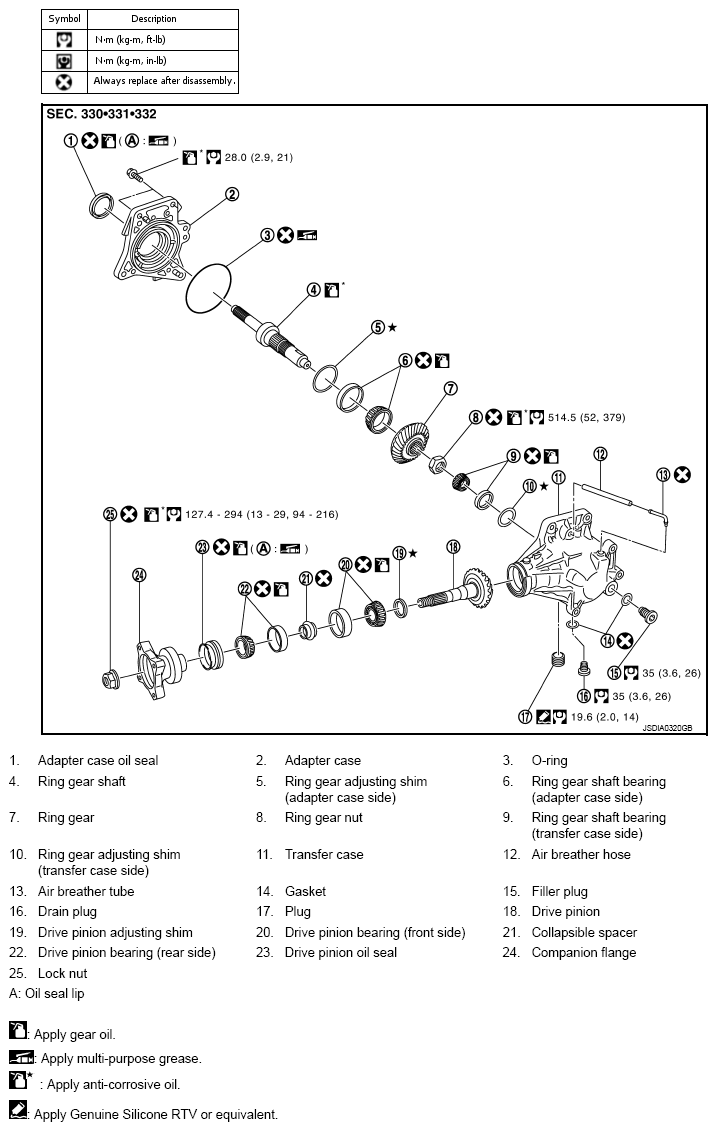

Fig 1: Exploded View Of Drive Pinion With Torque Specifications

G09611502

Courtesy of NISSAN NORTH AMERICA, INC.

Refer to "COMPONENTS " for symbols not described above.
