Removal and Installation: Installation

Note the following, and install in the reverse order of removal.

• Install mounting bolts according to the standard below when installing transfer assembly to the transaxle assembly.

  Bolt symbol	A	B
  Installation direction	Transfer ==> Transaxle	Transaxle ==> Transfer

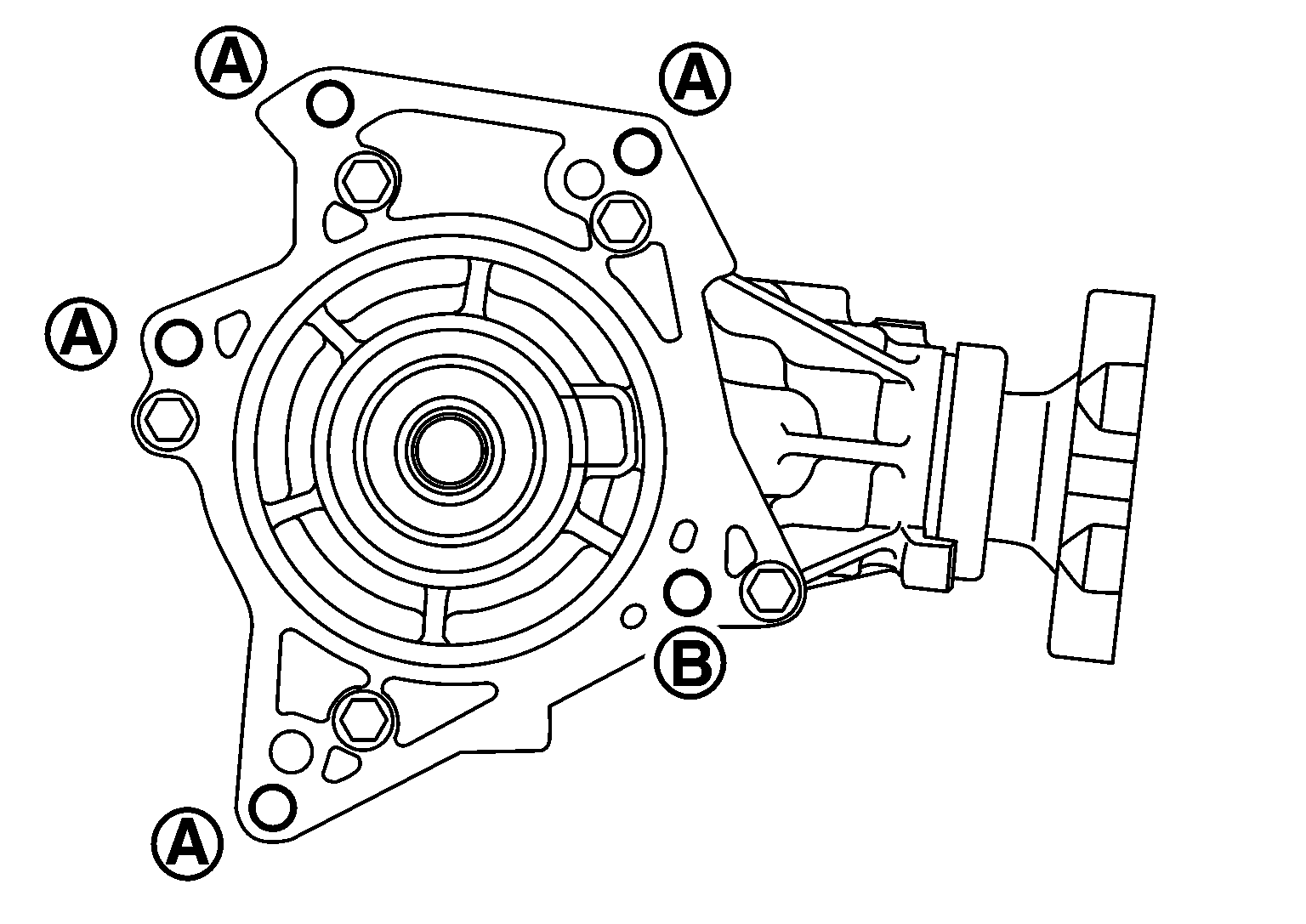

  Fig 1: Identifying Transfer And Transaxle Assembly Mounting Bolts

  Courtesy of NISSAN NORTH AMERICA, INC.
  CAUTION:

  • When installing transfer assembly to transaxle assembly, replace the side oil seal (transfer joint). Refer to "AWD: EXPLODED VIEW ".
  • Never damage side seal (the joint part of transfer) and dust cover of transaxle assembly.
• Check oil level and check for oil leakage after installation. Refer to "INSPECTION ".
