Back Door Window Glass
›
Exploded View
Exploded View

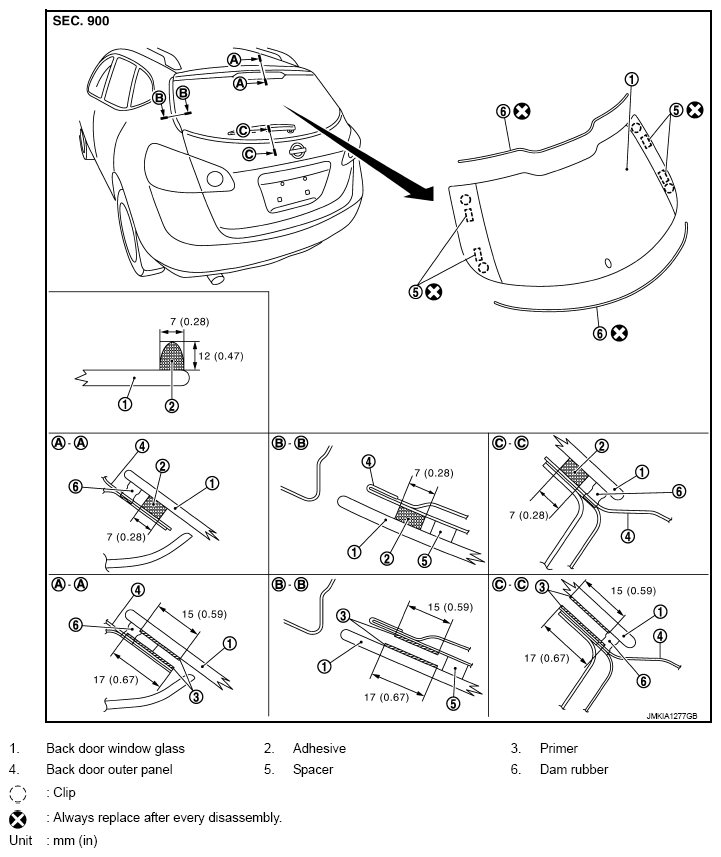

Fig 1: Exploded View Of Back Door Window Glass
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
