Front Door Glass
›
Exploded View
Exploded View

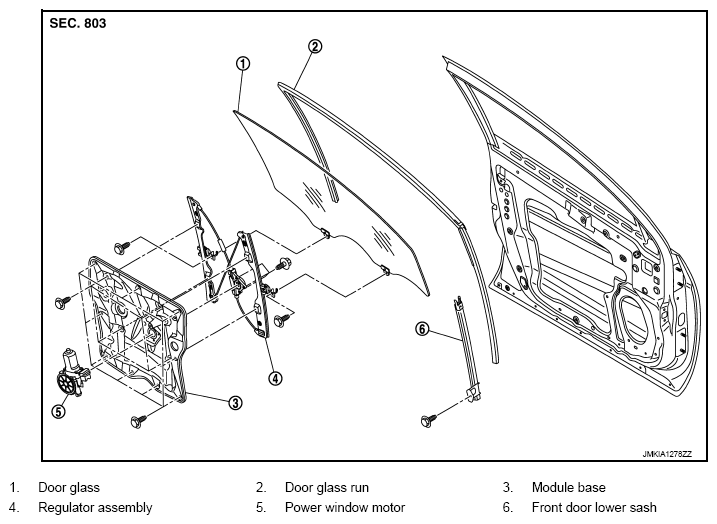

Fig 1: Exploded View Of Front Door Glass
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
The door panel on the right is for your reference.
Courtesy of NISSAN NORTH AMERICA, INC.
