Engine Lubrication System Schematic

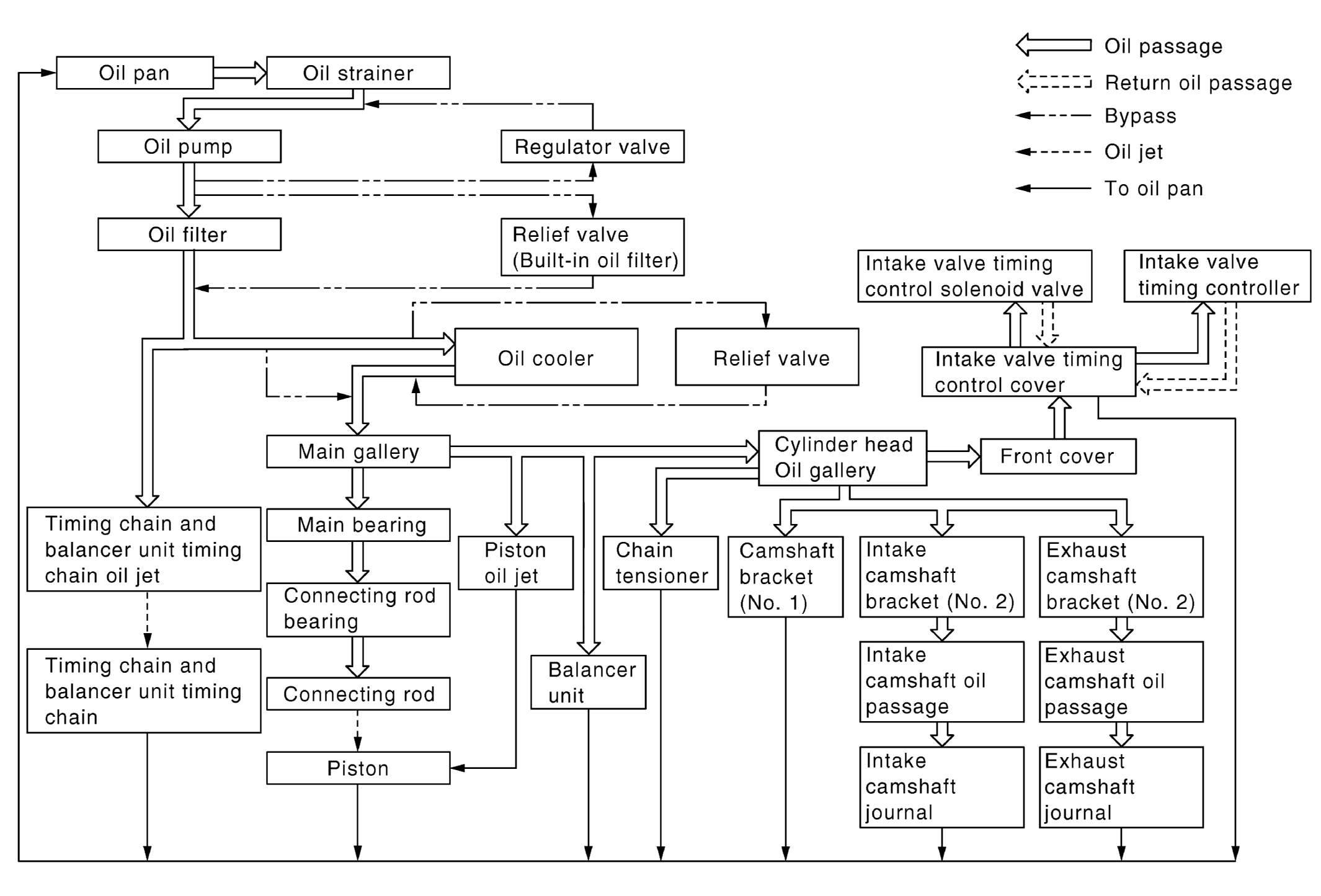

Fig 1: Engine Lubrication System Schematic
G05368831Courtesy of NISSAN NORTH AMERICA, INC.
