Nissan-Datsun
›
2014
›
Rogue Select FWD
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System
›
Unit Disassembly And Assembly
›
Oil Pump
›
Exploded View
Exploded View

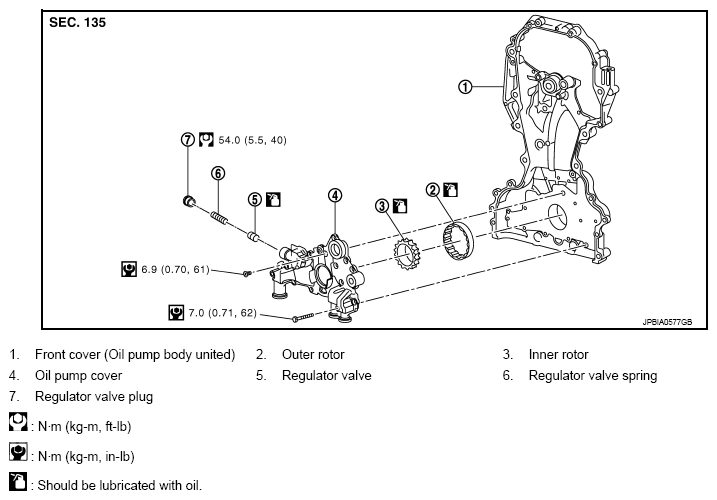

Fig 1: Exploded View Of Oil Pump With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
