DRIVER SIDE: Exploded View
DRIVER SIDE: Exploded View

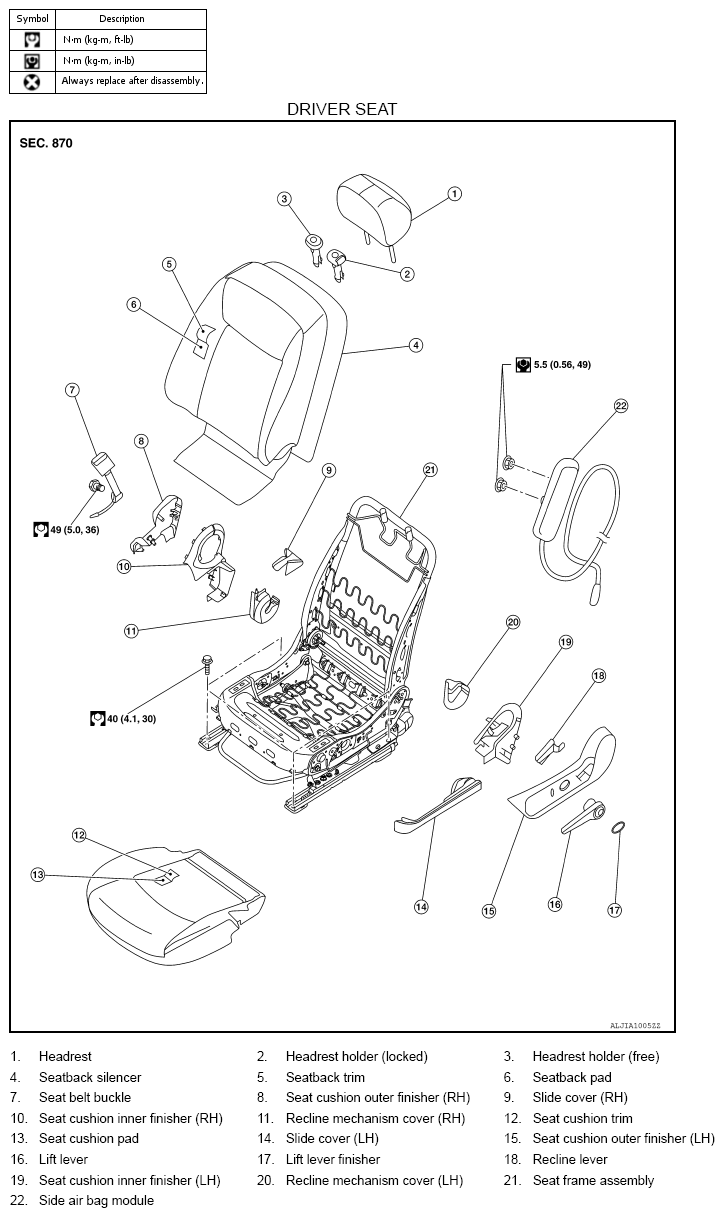

Fig 1: Exploded View Of Front Seat (Driver Seat) With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
